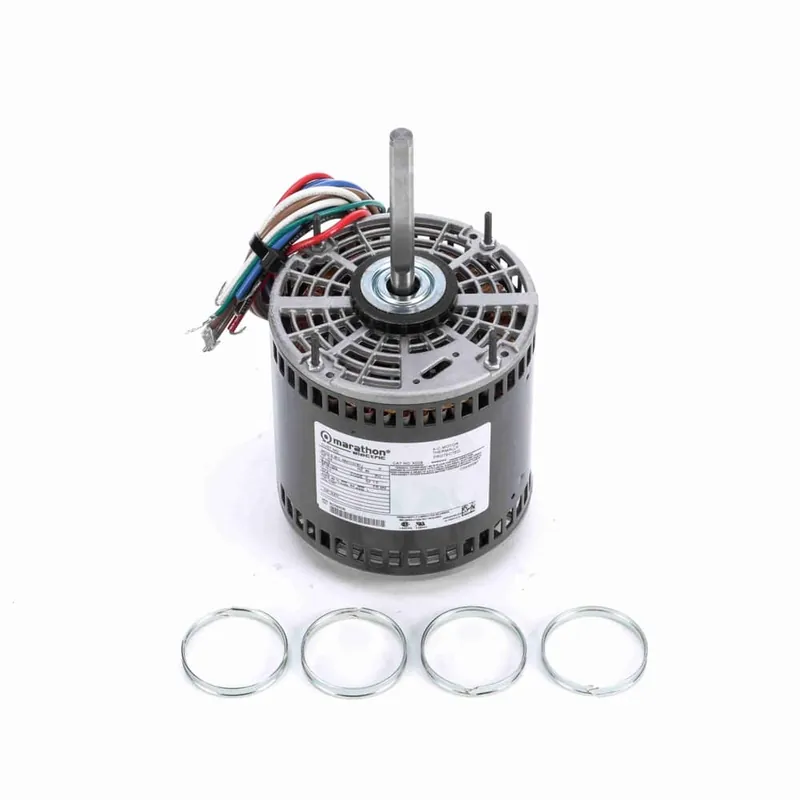

3/4HP PSC 48Z OAO 3spd 1075 115V BM

Description

Product Information

Brand Marathon
Mfr # X009
Wright’s # MAR X009
Country of Origin MEX

Specifications

C Dim 10.75″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 64
Frame 48Z
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Ring – Extended Studs
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 10.2
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
