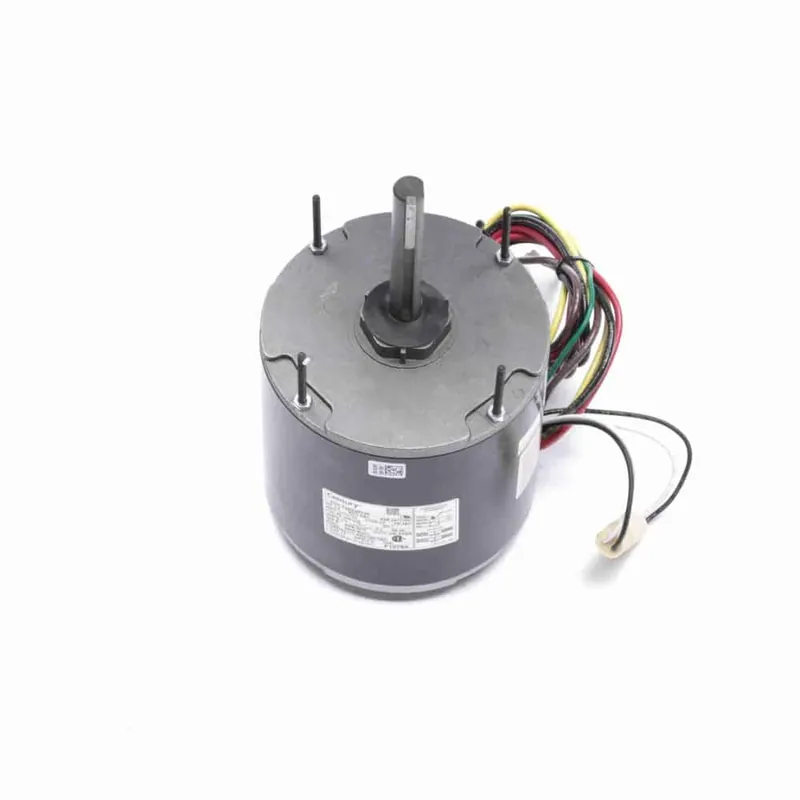

3/4HP PSC 48Y TE 2spd 1075 208-230V 15uF CF

Description

Product Information

Brand Century
Mfr # F1076A
Wright’s # CEN F1076A

Specifications

C Dim 10.19″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 6
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 3.5
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.625″
Speed 1075/750
Starting Method
