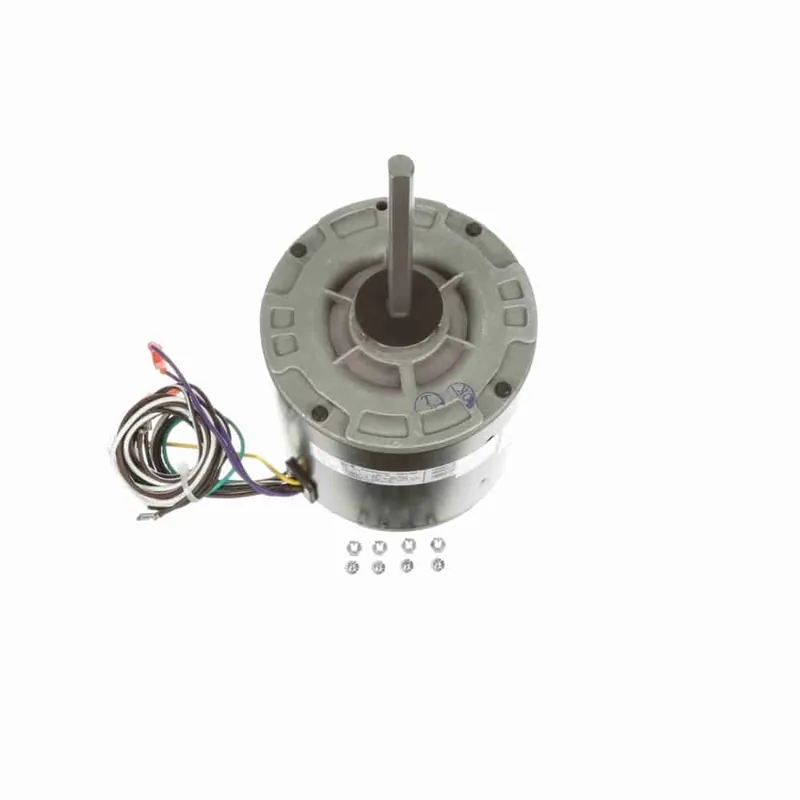

3/4HP PSC 48Y TE 1075 460V 15uF CF

Description

Product Information

Brand Century
Sub-Brand PRO-E SERIES®
Mfr # EM3739F
Wright’s # CEN EM3739F
Country of Origin MEX

Specifications

C Dim 12.17″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class F
kW 0.56kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.8
Rated Voltage 460
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
