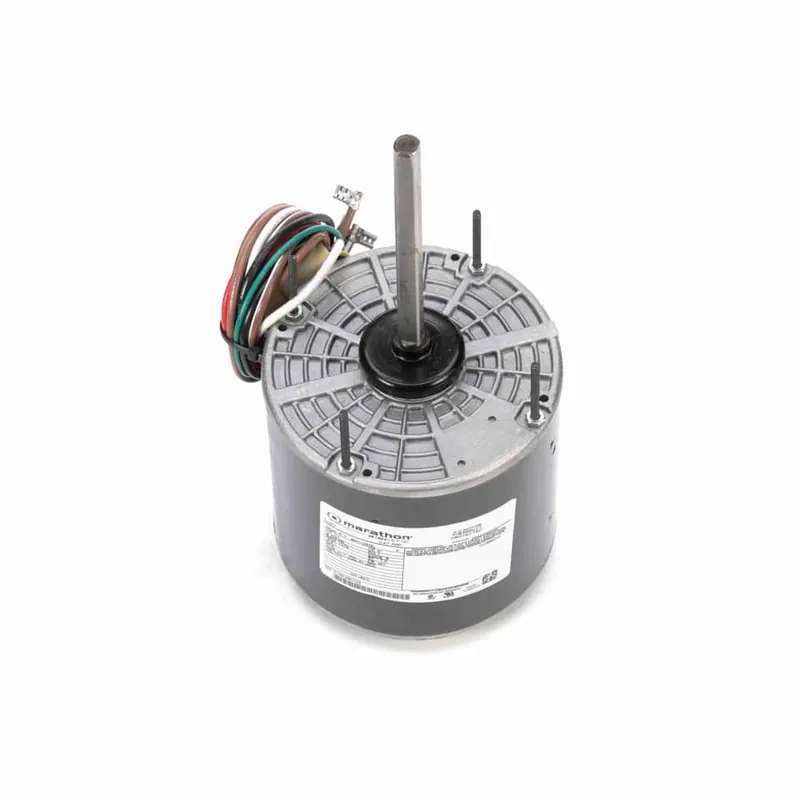

3/4HP PSC 48Y OAO 2spd 1075 208-230V NB CF

Description

Product Information

Brand Marathon
Mfr # X085
Wright’s # MAR X085
Country of Origin MEX

Specifications

C Dim 12.44″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 66
Frame 48Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round – Extended Studs
Number of Poles 6
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 5.1
Rated Voltage 208-230
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
