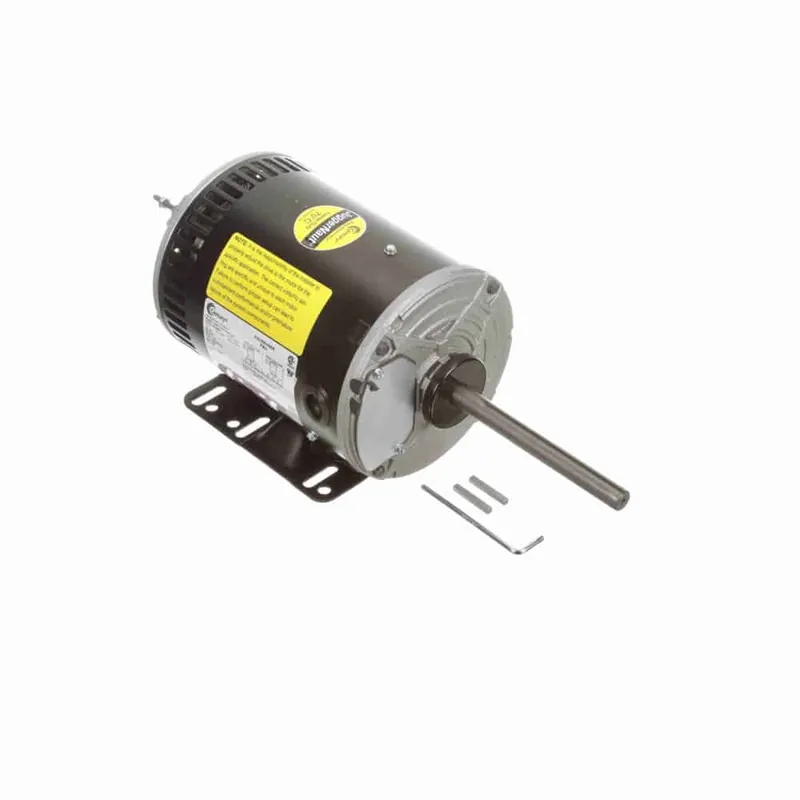

3/4HP 3PH 56HZ OAO 1140 230/460V CF
Description
Product Information
Brand Century
Sub-Brand JuggerNaut®
Mfr # H1056AV1
Wright’s # CEN H1056AV1
Country of Origin MEX
Specifications
Electrical Type Squirrel Cage Induction Run
Enclosure OAO
Full Load Efficiency 74
Frame 56HZ
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class F
kW 0.56kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 3.2/1.6
Rated Voltage 230/460
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.625″
Speed 1140
Starting Method
