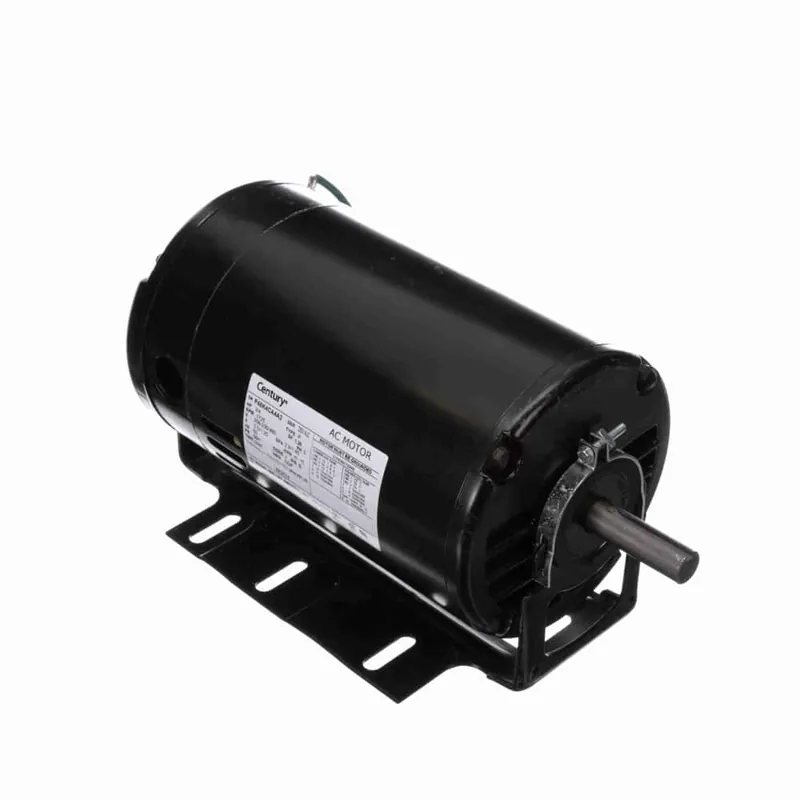

3/4HP 3PH 56H ODP 1725 208-230/460V BM

Description

Product Information

Brand Century
Mfr # BK3074
Wright’s # CEN BK3074
Country of Origin MEX

Specifications

C Dim 11.94″
Electrical Type Polyphase
Enclosure ODP
Frame 56H
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 2.5/1.25
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
