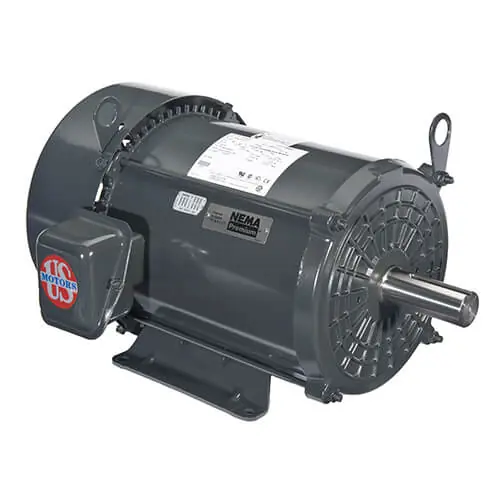

3/4HP 3PH 56H 1200 TEFC 208-230/460V

Description

Product Information

Brand US Motors
Mfr # T34S3AH
Wright’s # USM T34S3AH
Country of Origin MEX

Specifications

C Dim 12.9″
Electrical Type Polyphase
Enclosure TEFC
Frame 56H
Frequency 60Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
MaAmbient 40°C
Mounting Type RIGID BASE
Number of Poles 6
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 3.1-3.2/1.6
Rated Voltage 208-230/460V
RPM 1140
Service Factor 1.15
