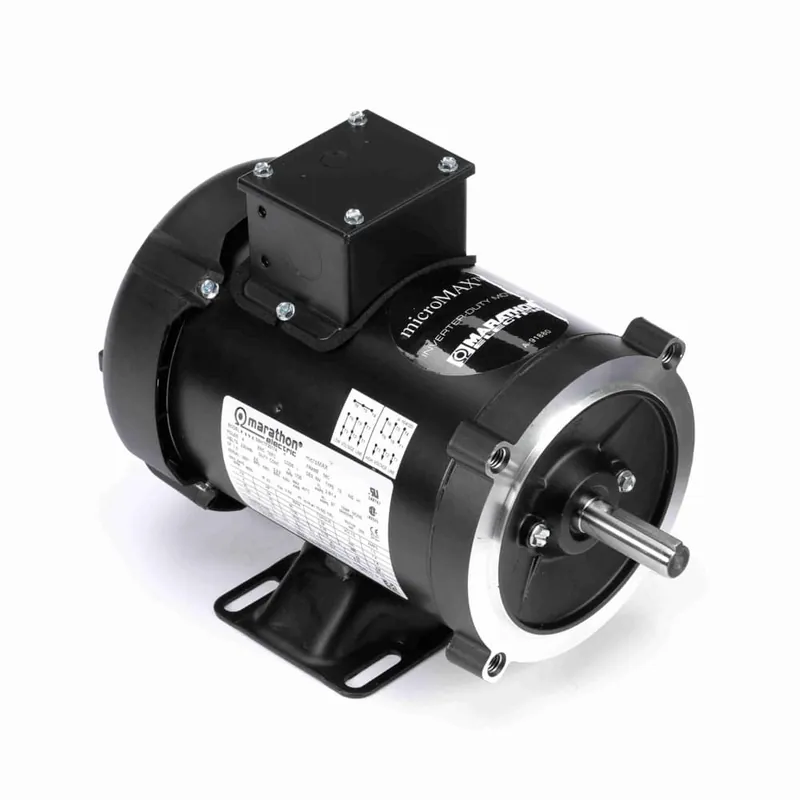

3/4HP 3PH 56C 4P TEFC 1800 230/460V WB INV

Description

Product Information

Brand Marathon
Sub-Brand microMAX™ Inverter Duty
Mfr # Y362
Wright’s # MAR Y362
Country of Origin MEX

Specifications

C Dim 11.19″
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 75.5
Frame 56C
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class H
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.8/1.4
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
