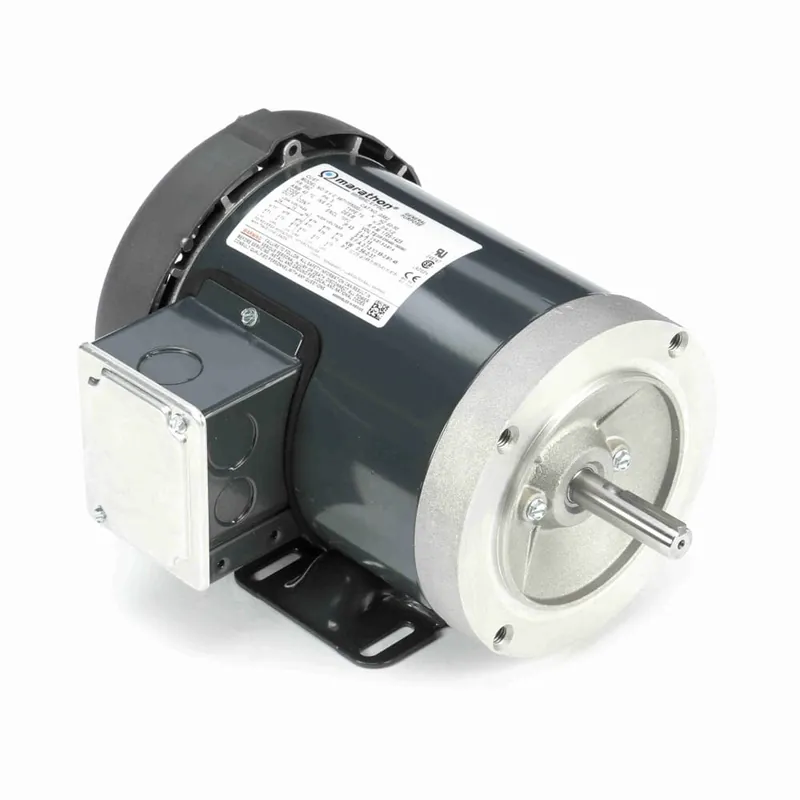

3/4HP 3PH 56C 4P TEFC 1800 208-230/460V WB

Description

Product Information

Brand Marathon
Mfr # G582
Wright’s # MAR G582
Country of Origin MEX

Specifications

C Dim 11.81″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 75.5
Frame 56C
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class F
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Bolt-on Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.9-3/1.5 & 2.7/1.35
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725 & 1425
Starting Method
