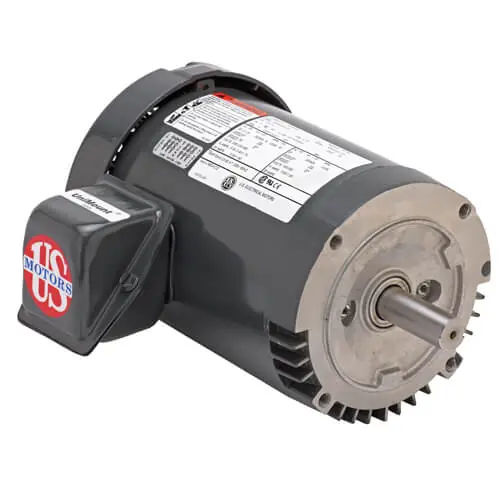

3/4HP 3PH 56C 3600 TEFC 208-230/460V NB

Description

Product Information

Brand US Motors
Mfr # U34S1ACR
Wright’s # USM U34S1ACR
Country of Origin MEX

Specifications

C Dim 10.8″
Electrical Type Polyphase
Enclosure TEFC
Frame 56C
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class F
kW 0.56kW
MaAmbient 40°C
Mounting Type HORZ-FOOTLESS
Number of Poles 2
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 2.4-2.2/1.1
Rated Voltage 208-230/460V
RPM 3500
Service Factor 1.25
