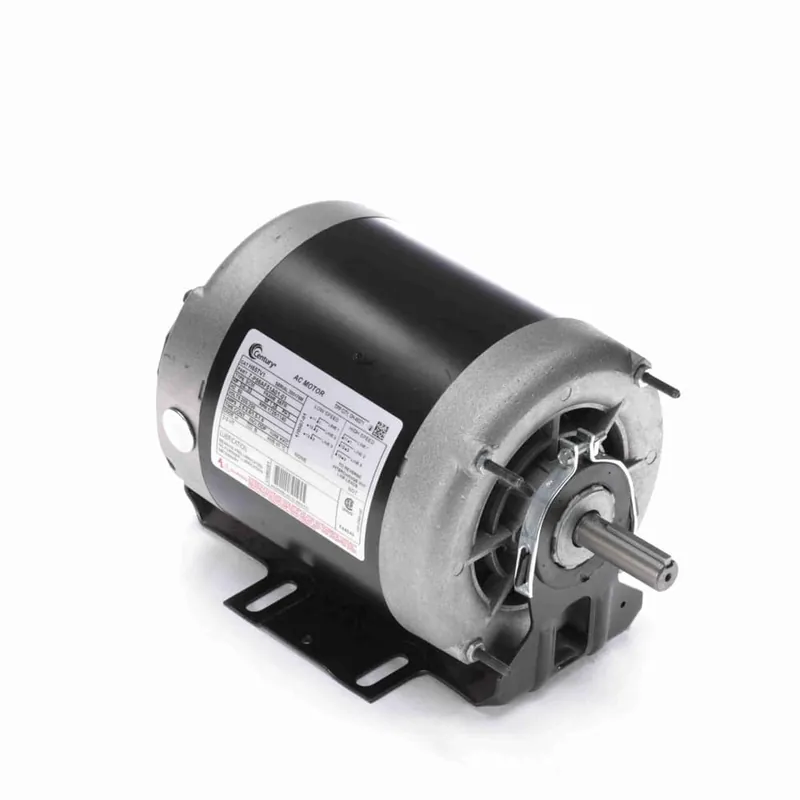

3/4HP 3PH 56 ODP 2spd 1725 200-230V BM

Description

Product Information

Brand Century
Mfr # H657V1
Wright’s # CEN H657V1
Country of Origin MEX

Specifications

C Dim 10.69″
Electrical Type Polyphase, Induction Type, Multi-Speed
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 0.75 HP
HP2 3/4-.33 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4/6
Number of Speeds 2
Overload Protection No Protection
Phase 3
Rated Current 2.5-2.6/1.5-1.6
Rated Voltage 200-230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725/1140
Starting Method
