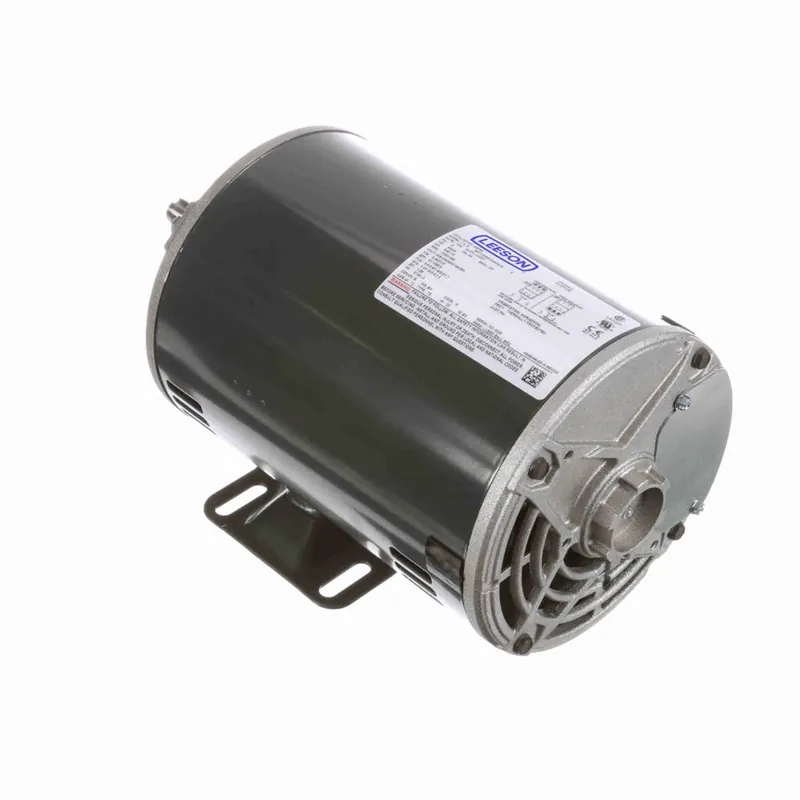

3/4HP 3PH 56 ODP 1800 208-230/460V AOL

Description

Product Information

Brand Leeson
Mfr # G908A
Wright’s # LSN G908A
Country of Origin MEX

Specifications

C Dim 12.49″
Electrical Type Squirrel Cage Induction Run
Enclosure Drip Proof
Full Load Efficiency 81.1
Frame 56
Frequency 60
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Overload Protection Automatic
Phase 3
Rated Current 2.6-2.6/1.3
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Starting Method
