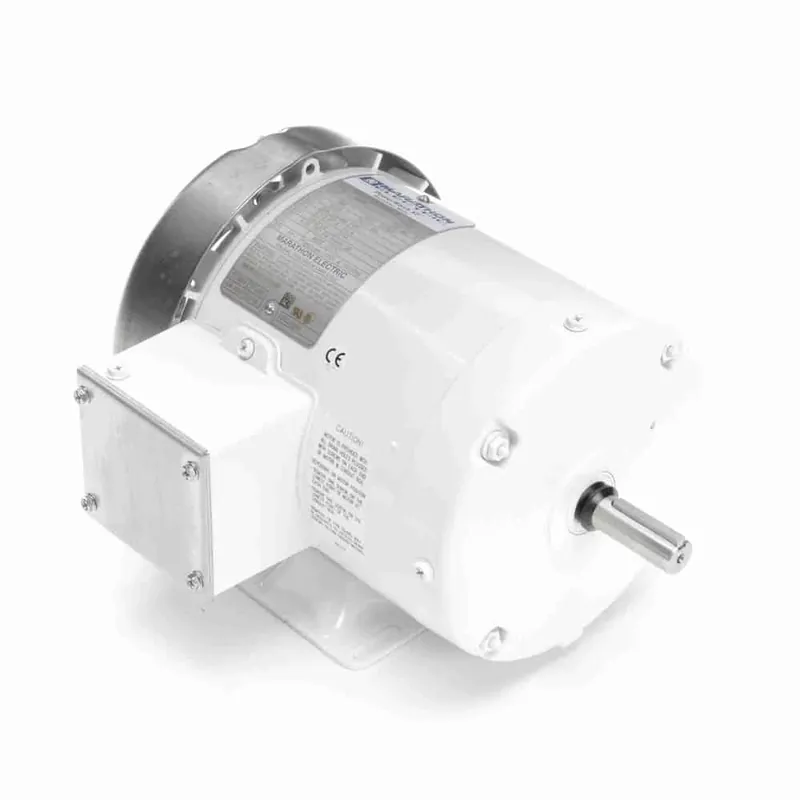

3/4HP 3PH 56 4P TEFC 1800 208-230/460V WB WD

Description

Product Information

Brand Marathon
Sub-Brand PowerWash™ XT Wash Down Duty™
Mfr # N320
Wright’s # MAR N320
Country of Origin USA

Specifications

C Dim 10.78″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 77
Frame 56
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class F
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.7-2.8/1.4
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
