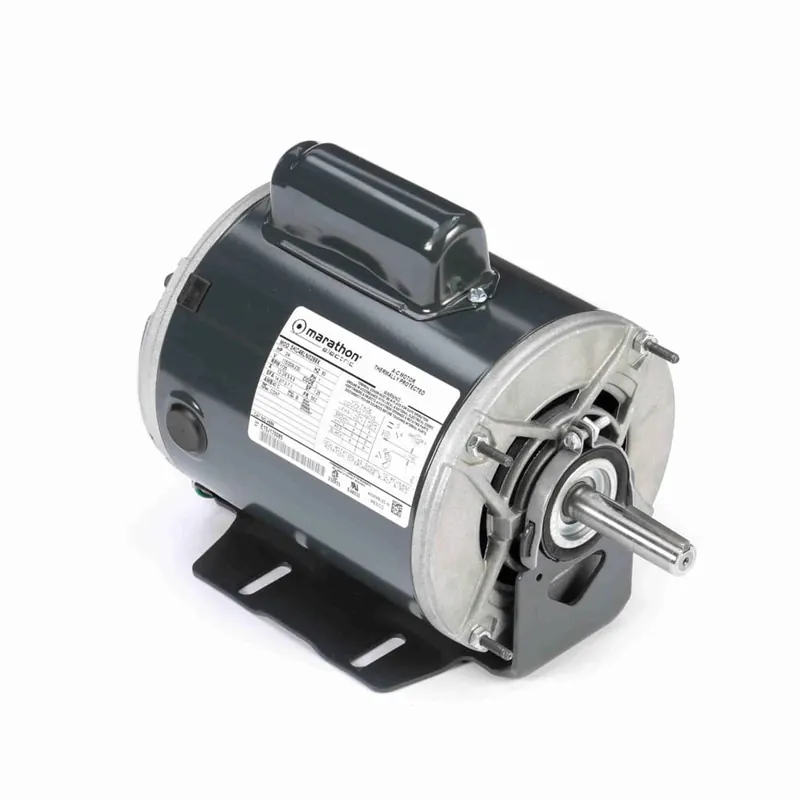

3/4HP 1PH 56Z ODP 1800 115/208-230V BM

Description

Product Information

Brand Marathon
Mfr # 4686
Wright’s # MAR 4686
Country of Origin MEX

Specifications

C Dim 11.15″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 70
Frame 56Z
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 13.3,6.5-6.6
Rated Voltage 115/208-230
Rotation Counterclockwise/Clockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.63″
Speed 1725
Starting Method
