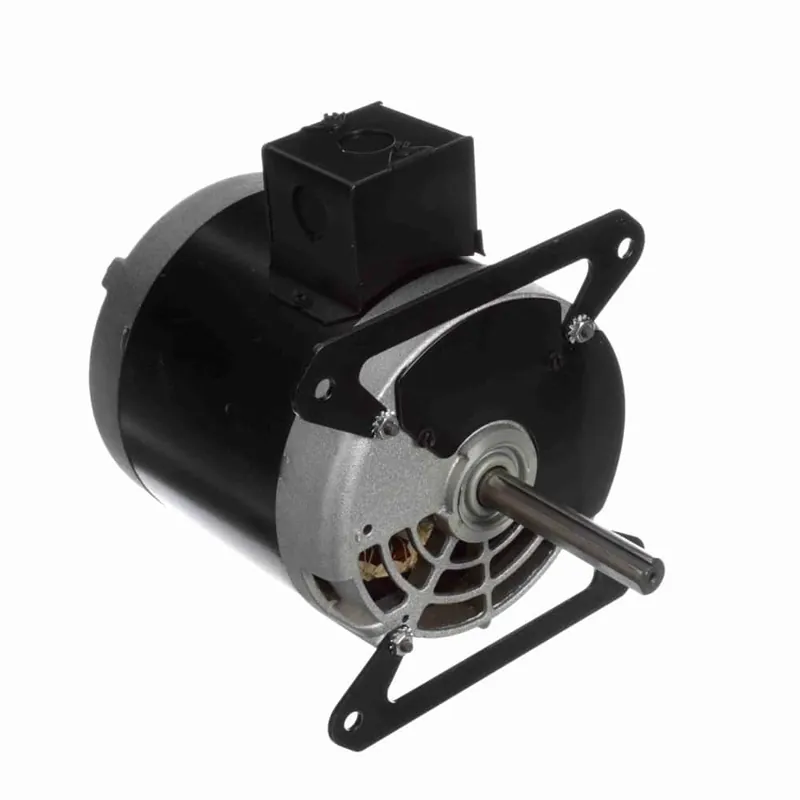

3/4HP 1PH 56Y 4P ODP 1725 115/230V AOL OVEN

Description

Product Information

Brand Century
Mfr # F269
Wright’s # CEN F269
Country of Origin MEX

Specifications

C Dim 10.87″
Electrical Type Split Phase, Induction Run, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 9.6/4.8
Rated Voltage 115/230
Rotation Reversible Clockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
