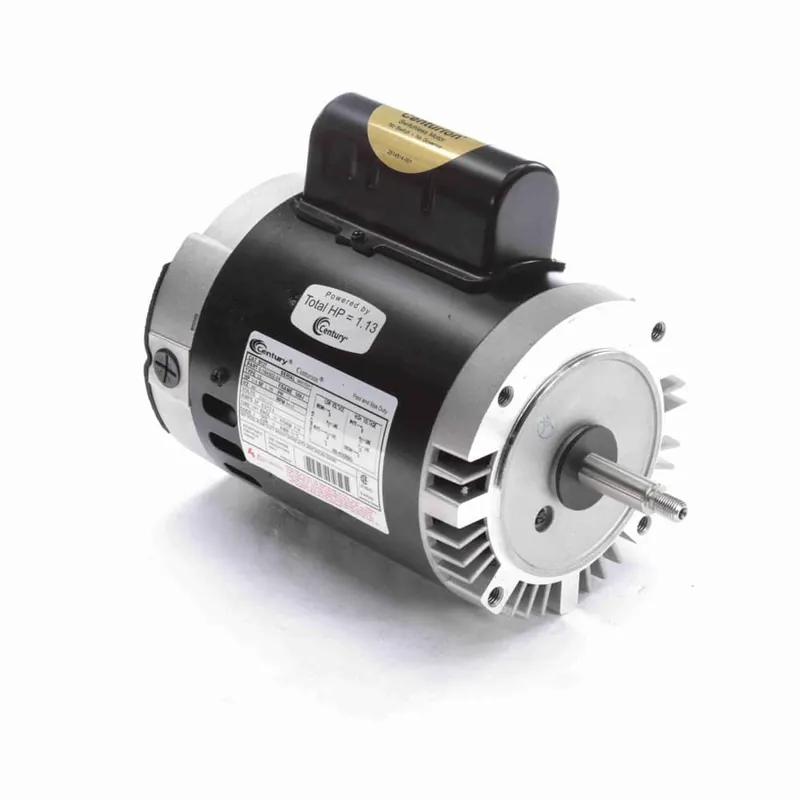

3/4HP 1PH 56J 2P ODP 3450 115/230V AOL UL1081

Description

Product Information

Brand Century
Mfr # B127
Wright’s # CEN B127
Country of Origin THA

Specifications

C Dim 12.01″
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure ODP
Frame 56J
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current SF 6.0/12.0
Rated Voltage 115/230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.5
Shaft Diameter 0.625″
Speed 3450
