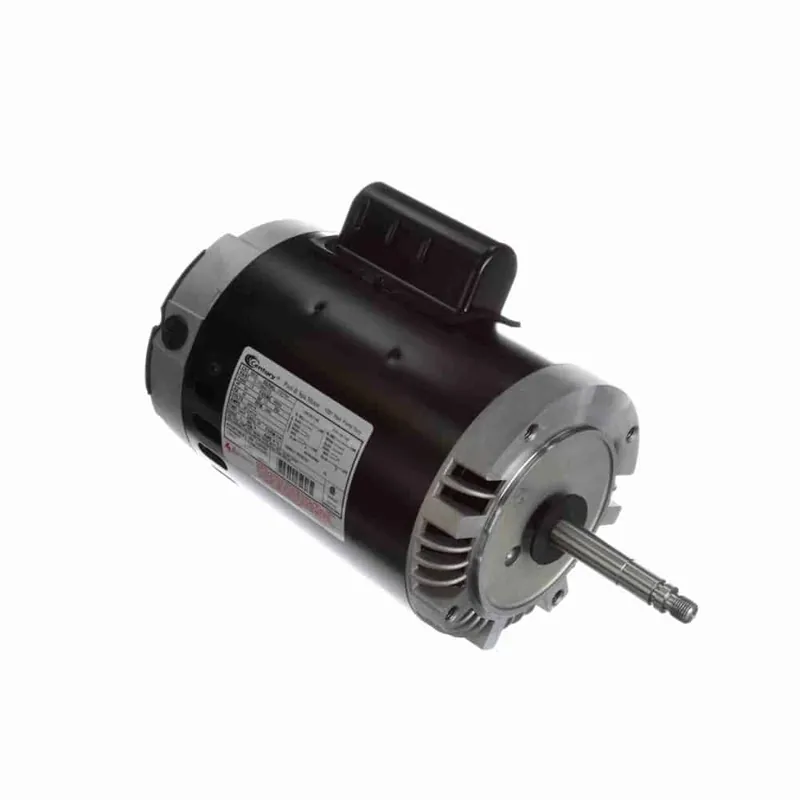

3/4HP 1PH 56CZ 2P ODP 3450 115/230V AOL UL1081

Description

Product Information

Brand Century
Mfr # B625
Wright’s # CEN B625
Country of Origin CHN

Specifications

C Dim 14.13″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure ODP
Frame 56CZ
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current SF 6.4/12.8
Rated Voltage 115/230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.5
Shaft Diameter 0.665″
Speed 3450
