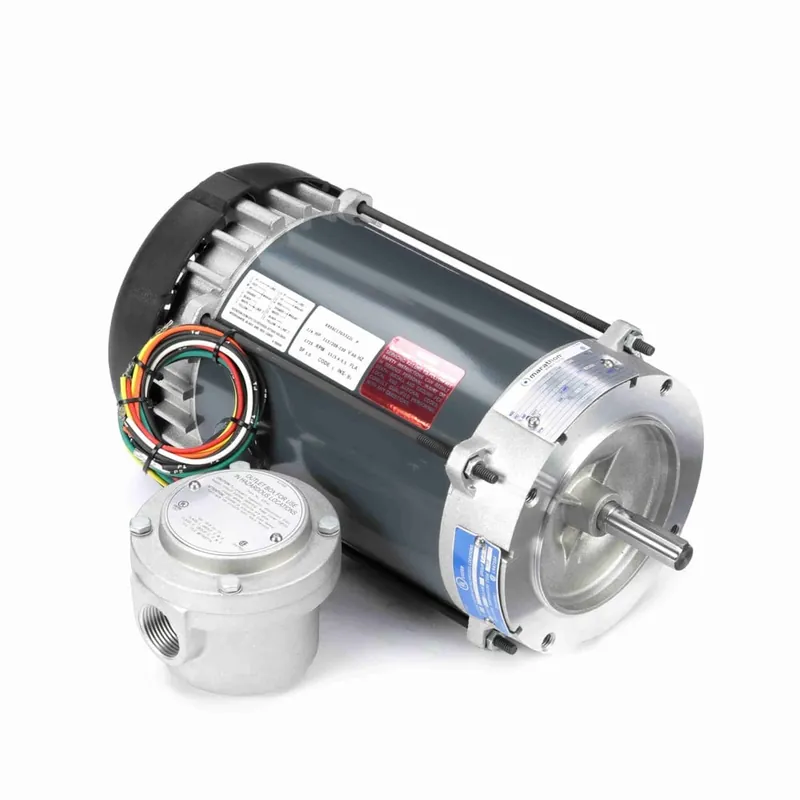

3/4HP 1PH 56C 4P XPFC 1800 115/230V AOL NB

Description

Product Information

Brand Marathon
Sub-Brand Hazardous Duty®
Mfr # G857
Wright’s # MAR G857
Country of Origin MEX

Specifications

C Dim 14.44″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 70
Frame 56C
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 11.0/5.5
Rated Voltage 115/230
Rotation Selective Clockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
