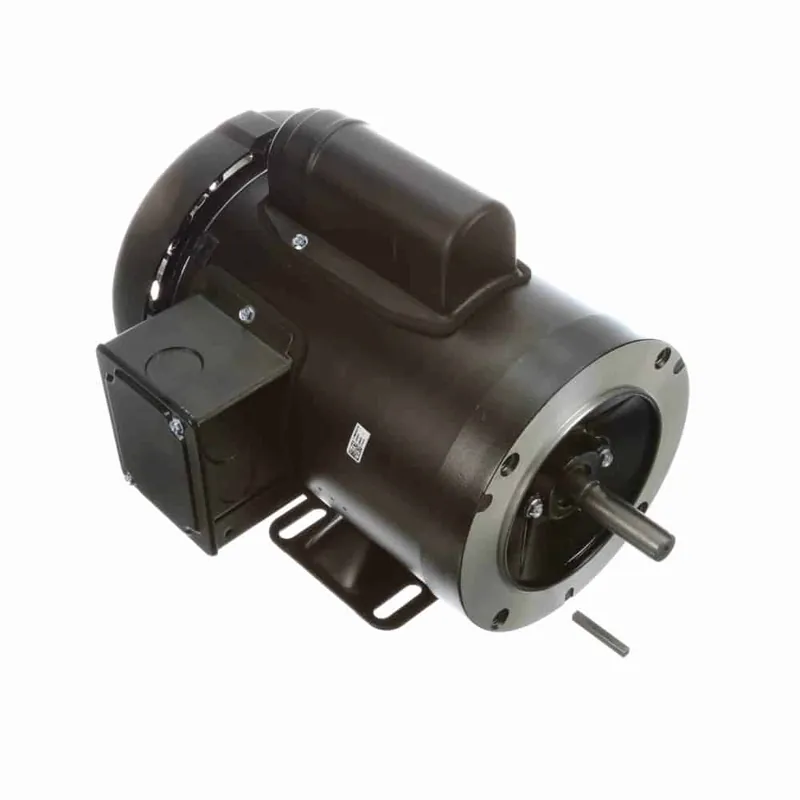

3/4HP 1PH 56C 4P TEFC 1725 115/208-230V

Description

Product Information

Brand Century
Mfr # C828V1
Wright’s # CEN C828V1
Country of Origin MEX

Specifications

C Dim 13.15″
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 72
Frame 56C
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class F
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 10.4/5.2-5.2
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
