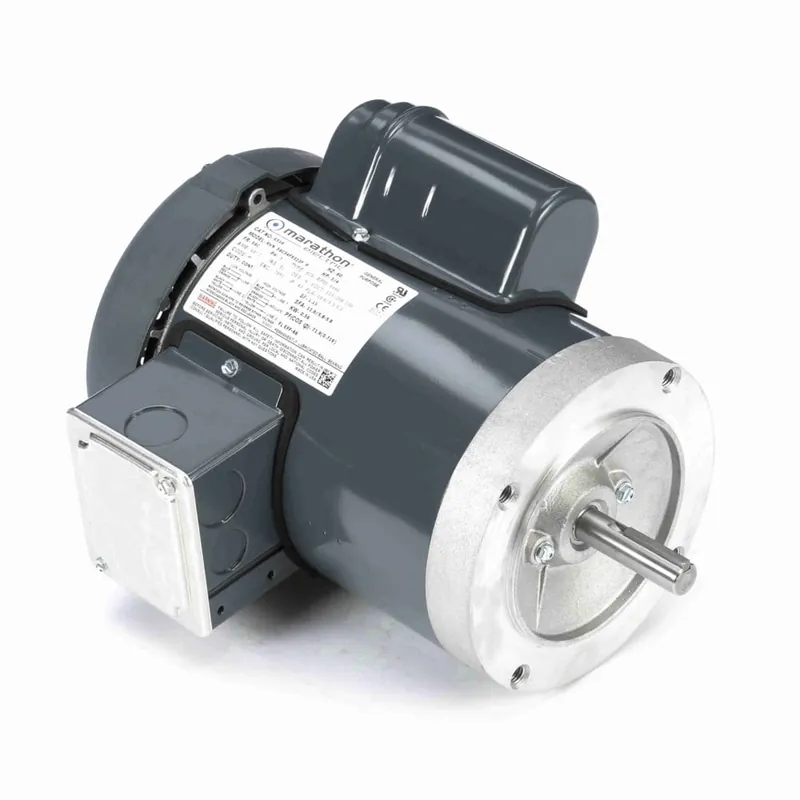

3/4HP 1PH 56C 2P TEFC 3600 115/208-230V NB

Description

Product Information

Brand Marathon
Mfr # G516
Wright’s # MAR G516
Country of Origin MEX

Specifications

C Dim 12.32″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 66
Frame 56C
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 10.6/5.3-5.3
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
