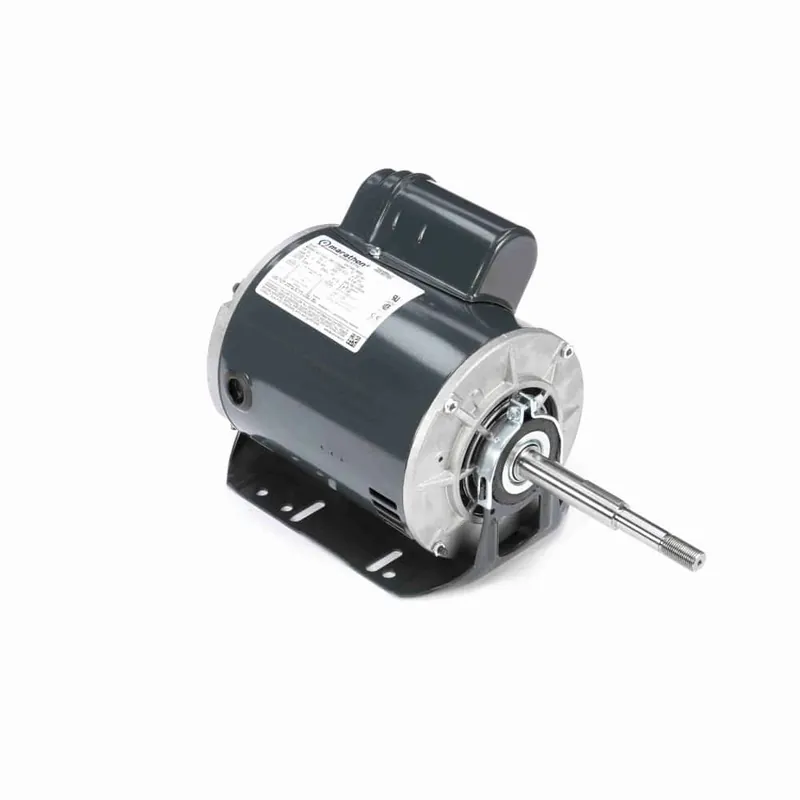

3/4HP 1PH 56 ODP 1800 115/208-230V AOL Dryer

Description

Product Information

Brand Leeson
Mfr # X603
Wright’s # LSN X603
Country of Origin MEX

Specifications

C Dim 15.1″
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 66
Frame 56
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 12.0/5.8-6.0
Rated Voltage 115/208-230
Rotation Fixed Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
