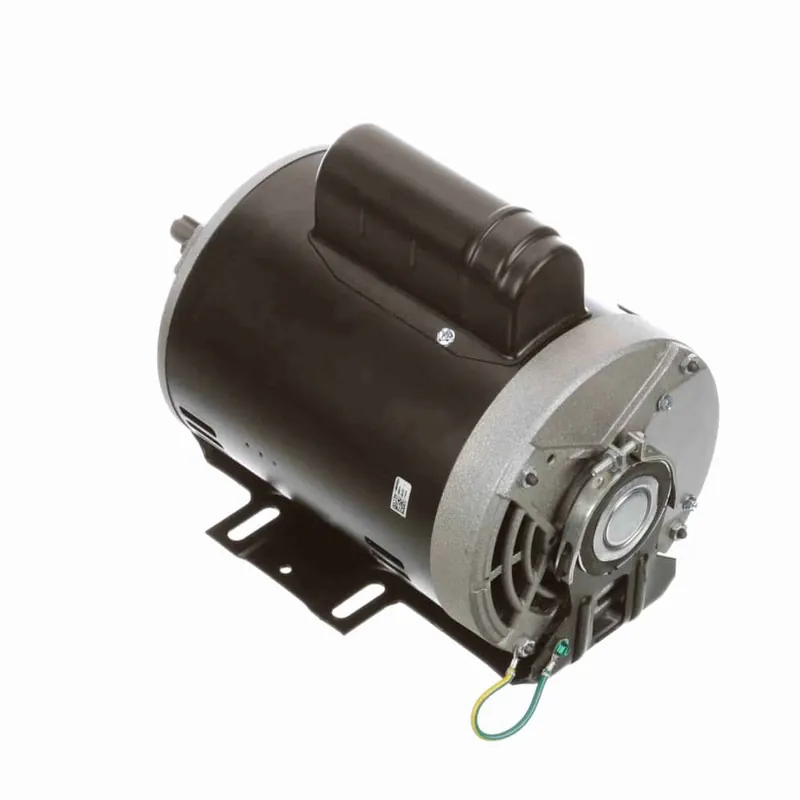

3/4HP 1PH 56 ODP 1725 115/208-230V BM

Description

Product Information

Brand Century
Mfr # C666V1
Wright’s # CEN C666V1
Country of Origin MEX

Specifications

C Dim 12.16″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 11.0/5.3-5.5
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
