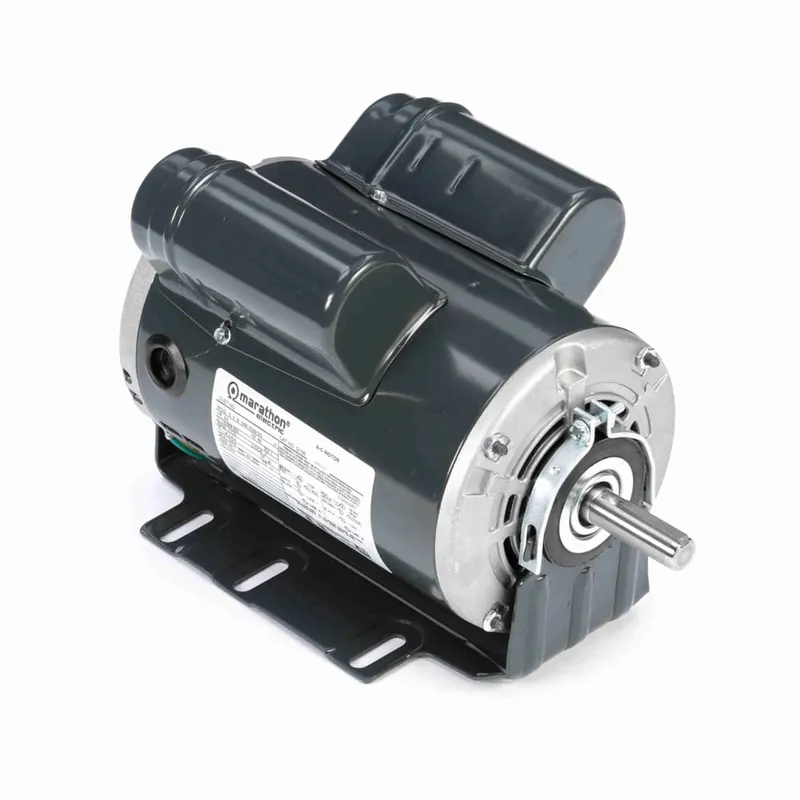

3/4HP 1PH 56 4P ODP 1800 115/208-230V RB

Description

Product Information

Brand Marathon
Mfr # G156
Wright’s # MAR G156
Country of Origin MEX

Specifications

C Dim 11.47″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Full Load Efficiency 72
Frame 56
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 11.0/5.5-5.5
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
