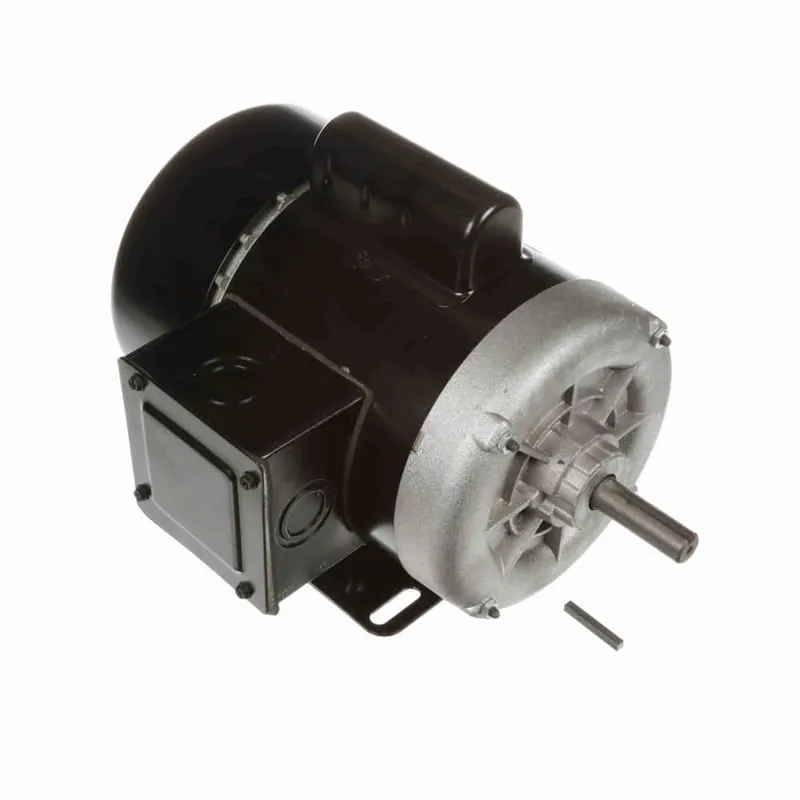

3/4HP 1PH 56 2P TEFC 3450 115/208-230V

Description

Product Information

Brand Century
Mfr # B664
Wright’s # CEN B664
Country of Origin MEX

Specifications

C Dim 12.24″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 5.0-4.6/9.2
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
