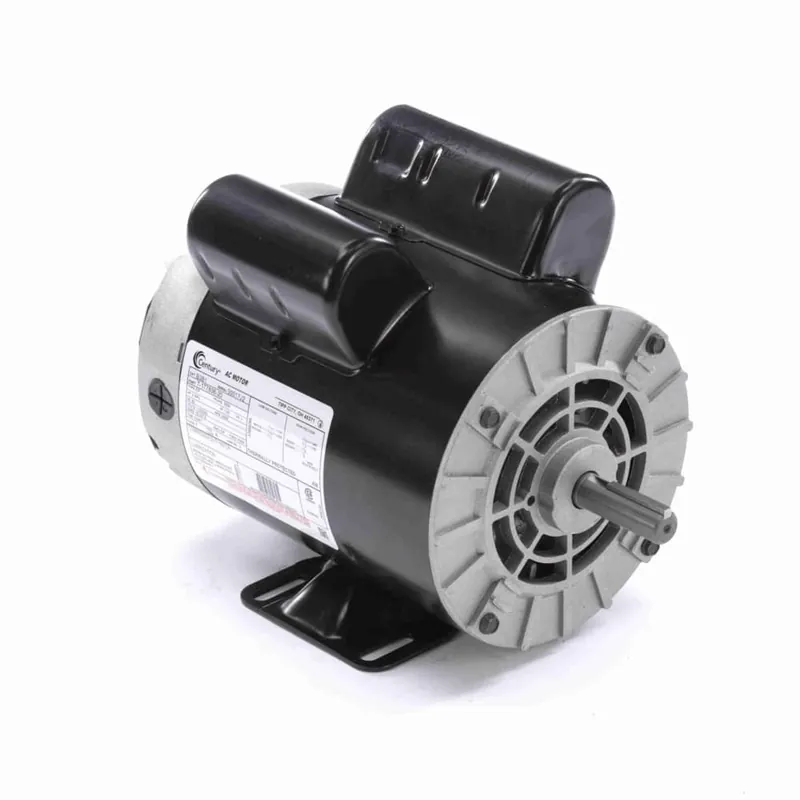

2HP SPL 1PH 56 2P ODP 3450 115/230V MOL CM

Description

Product Information

Brand Century
Mfr # B381
Wright’s # CEN B381
Country of Origin MEX

Specifications

C Dim 11.34″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 2 HP
HP2 2 SPL HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 15.0/7.5
Rated Voltage 115/230
Rotation Clockwise
RPM 3450
Service Factor 1
Shaft Diameter 0.625″
Speed 3450
Starting Method
