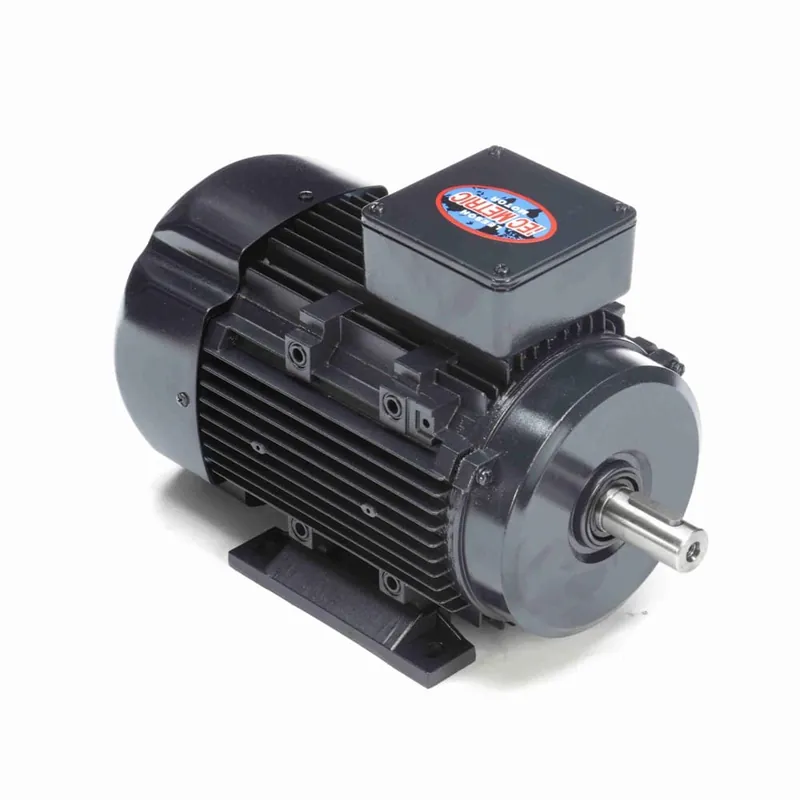

2HP 3PH 90L 4P TEFC 1745 230/460V
Description
Product Information
Brand Leeson
Sub-Brand LEESON® PASSPORT
Mfr # 192205.00
Wright’s # LSN 192205.00
Country of Origin CHN
Specifications
C Dim 13.38″
Electrical Type Squirrel Cage Induction Run
Enclosure TEFC
Full Load Efficiency 86.5
Frame 90L
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Aluminum
MaAmbient 40°C
Mounting Type B3
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 5.4/2.7 & 6.4/3.2
Rated Voltage 230/460
Rotation Reversible
RPM 1745
Service Factor 1.15
Shaft Diameter 1″
Speed 1745 & 1435
Starting Method
