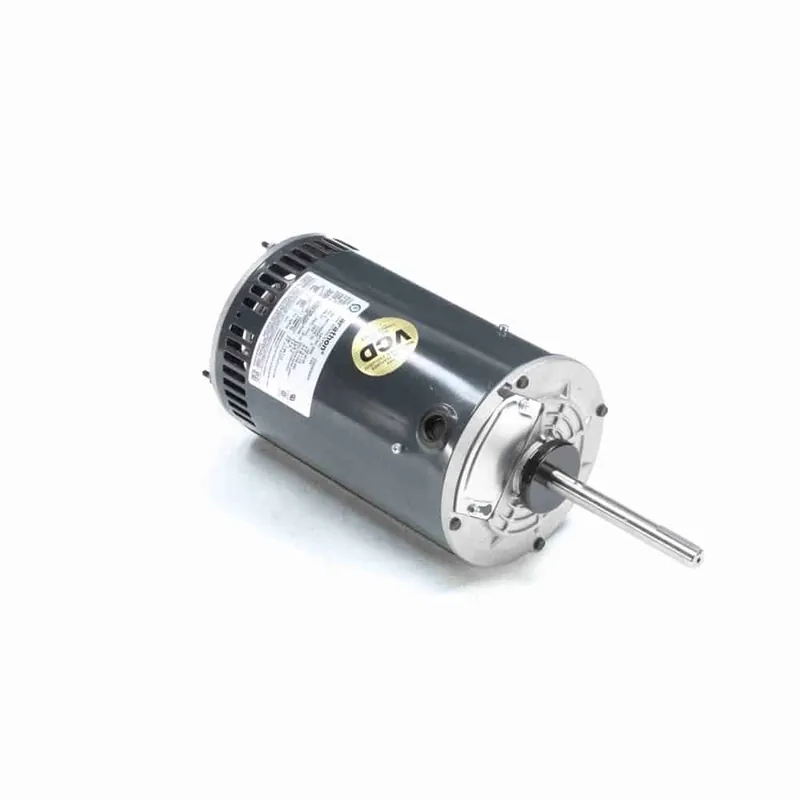

2HP 3PH 56Y OAO 1140 208-230/460V AOL CF

Description

Product Information

Brand Leeson
Mfr # X509
Wright’s # LSN X509
Country of Origin MEX

Specifications

C Dim 17.06″
Electrical Type Squirrel Cage Induction Run
Enclosure OAO
Full Load Efficiency 81.5
Frame 56Y
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class H
kW 1.5kW
Material Rolled Steel
MaAmbient 70°C
Mounting Type Round Belly Band
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 7.2-6.8/3.4 & 6.6/3.3
Rated Voltage 208-230/460
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.625″
Speed 1140 & 950
Starting Method
