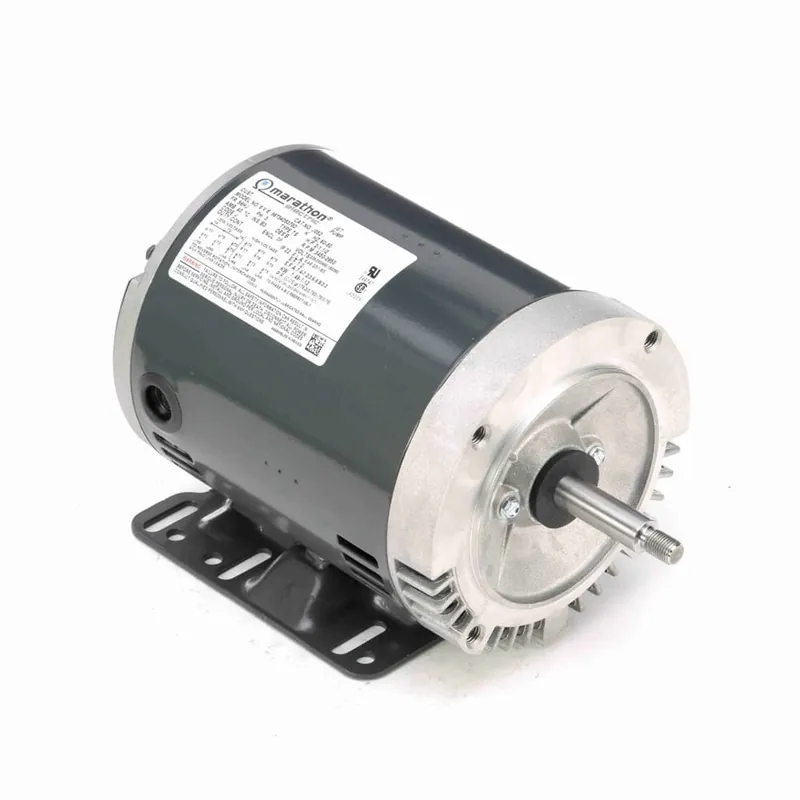

2HP 3PH 56HJ 2P ODP 3600 208-230/460V WB ( 56J )

Description

Product Information

Brand Marathon
Mfr # J052
Wright’s # MAR J052
Country of Origin MEX

Specifications

C Dim 10.93″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 80
Frame 56HJ
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 6.4-6.2/3.1 & 6/3
Rated Voltage 208-230/460
Rotation Reversible
RPM 3450
Service Factor 1.2
Shaft Diameter 0.625″
Speed 3600/3000
Starting Method
