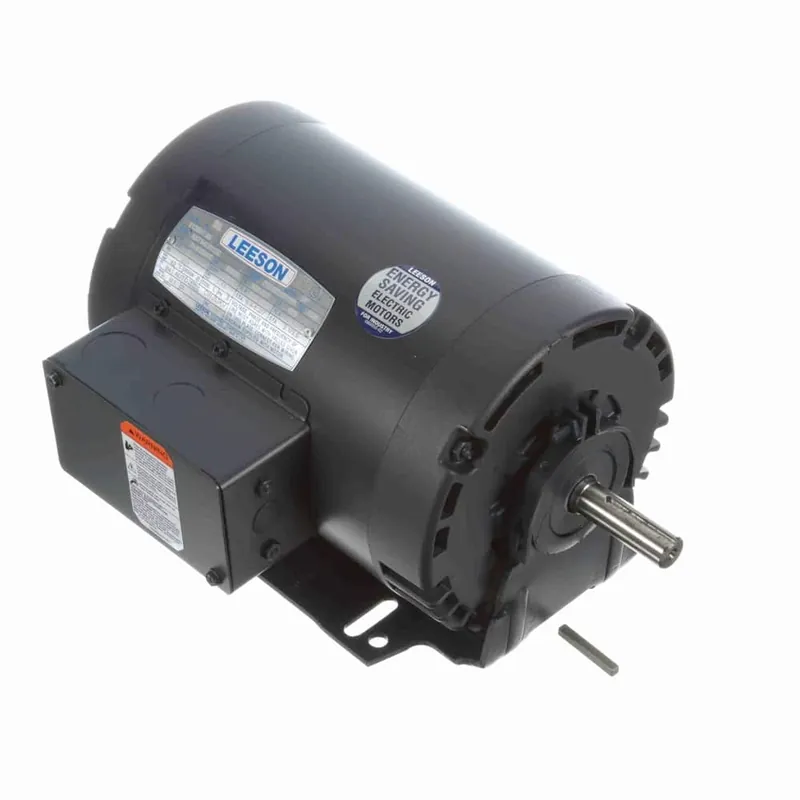

2HP 3PH 56H 2P DP 3450 208-230/460V AOL

Description

Product Information

Brand Leeson
Mfr # 113897.00
Wright’s # LSN 113897.00
Country of Origin USA

Specifications

C Dim 12.32″
Electrical Type Squirrel Cage Induction Run
Enclosure DP
Full Load Efficiency 82.5
Frame 56H
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 5.8-5.6/2.8 & 6.6/3.3
Rated Voltage 208-230/460
Rotation Reversible
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450 & 2850
Starting Method
