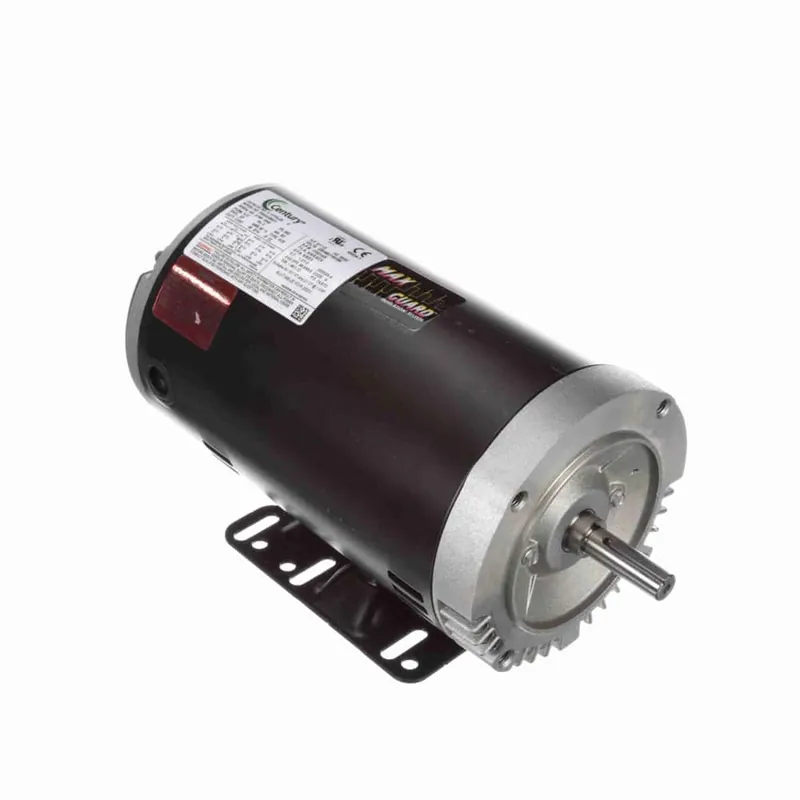

2HP 3PH 56C 4P ODP 1725 230/460V

Description

Product Information

Brand Century
Mfr # H710LES
Wright’s # CEN H710LES
Country of Origin MEX

Specifications

C Dim 13.44″
Electrical Type Three Phase
Enclosure ODP
Full Load Efficiency 86.5
Frame 56C
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 6.0/3.0
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1.2
Shaft Diameter 0.625″
Speed 1725
Starting Method
