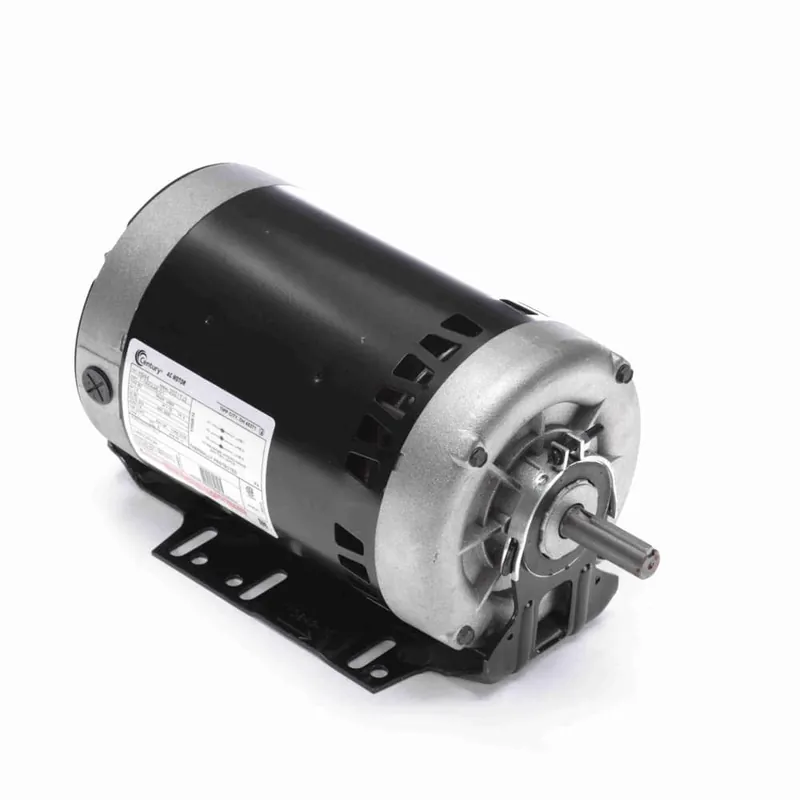

2HP 3PH 56 2P ODP 3450 200-230/460V

Description

Product Information

Brand Century
Mfr # H538
Wright’s # CEN H538
Country of Origin MEX

Specifications

C Dim 11.5″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 6.0-5.5/2.75
Rated Voltage 200-230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.2
Shaft Diameter 0.625″
Speed 3450
Starting Method
