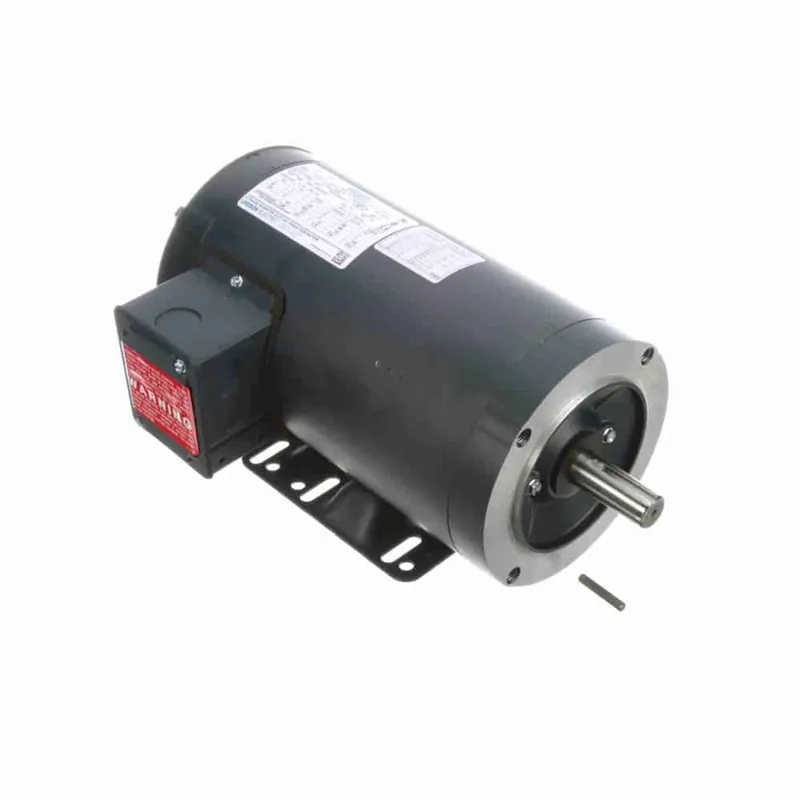

2HP 3PH 145TC 4P TENV 1745 230/460V WB Inv

Description

Product Information

Brand Leeson
Mfr # 122132.00
Wright’s # LSN 122132.00
Country of Origin MEX

Specifications

C Dim 16.04″
Electrical Type Squirrel Cage Inverter Duty
Enclosure TENV
Full Load Efficiency 86.5
Frame 145TC
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 6.0/3.0
Rated Voltage 230/460
Rotation Reversible
RPM 1745
Service Factor 1
Shaft Diameter 0.875″
Speed 1745
Starting Method
