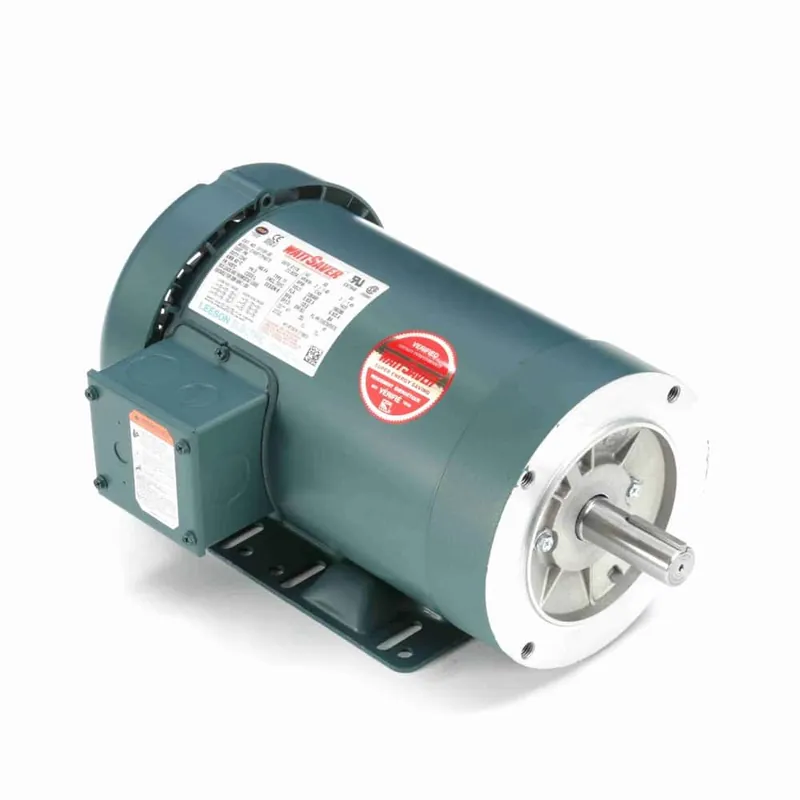

2HP 3PH 145TC 4P TEFC 1745 230/460V TS WB

Description

Product Information

Brand Leeson
Mfr # 121181.00
Wright’s # LSN 121181.00
Country of Origin USA

Specifications

C Dim 13.92″
Electrical Type Squirrel Cage Induction Run
Enclosure TEFC
Full Load Efficiency 86.5
Frame 145TC
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 5.8/2.9 & 6.8/3.4
Rated Voltage 230/460
Rotation Reversible
RPM 1745
Service Factor 1.25
Shaft Diameter 0.875″
Speed 1745 & 1435
Starting Method
