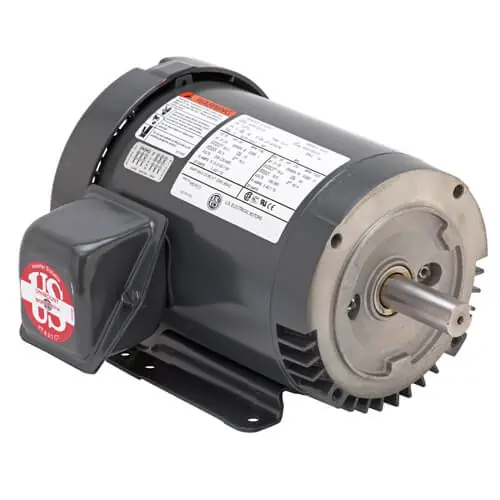

2HP 3PH 145TC 3600 TEFC 208-230/460V

Description

Product Information

Brand US Motors
Mfr # U2P1DC
Wright’s # USM U2P1DC
Country of Origin MEX

Specifications

C Dim 13.1″
Electrical Type Polyphase
Enclosure TEFC
Frame 145TC
Frequency 60/50 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.49kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 2
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 5.4-4.9/2.5
Rated Voltage 208-230/460V
RPM 3505
Service Factor 1.25
