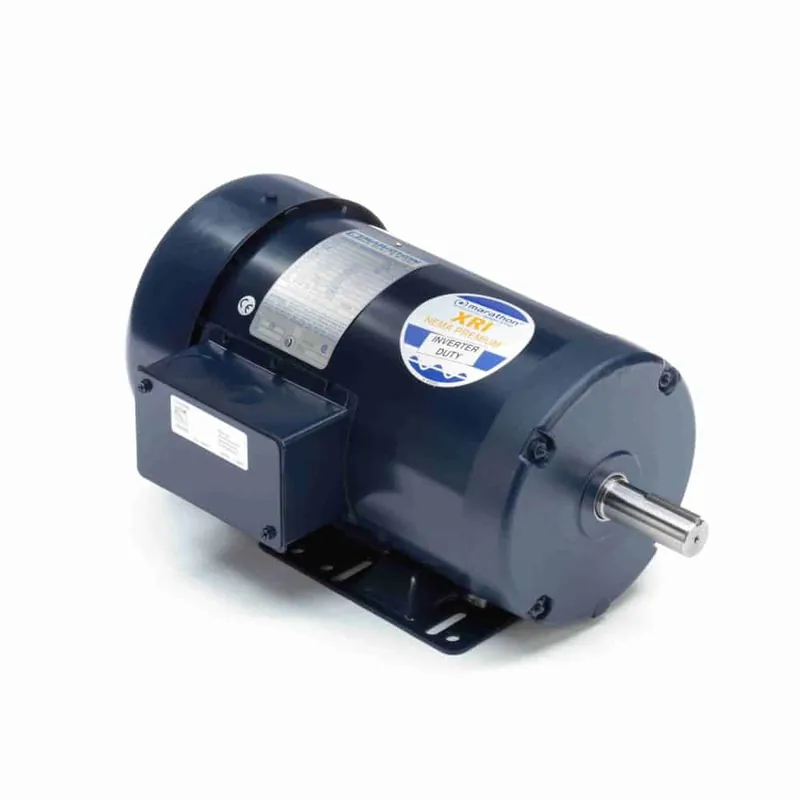

2HP 3PH 145T 4P TEFC 1800 230/460V WB

Description

Product Information

Brand Marathon
Sub-Brand XRI® General Purpose
Mfr # E2107
Wright’s # MAR E2107
Country of Origin USA

Specifications

C Dim 14.75″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 86.5
Frame 145T
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 5.8/2.9 & 6.8/3.4
Rated Voltage 230/460
Rotation Reversible
RPM 1745
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1745 & 1435
Starting Method
