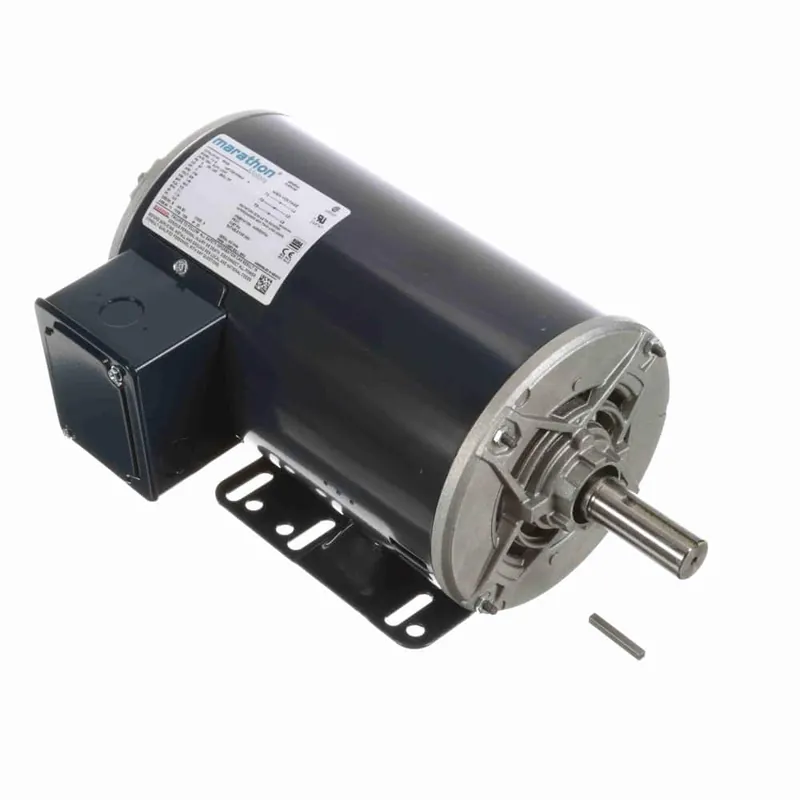

2HP 3PH 145T 4P ODP 1750 208V WB

Description

Product Information

Brand Marathon
Sub-Brand XRI® General Purpose
Mfr # E903A
Wright’s # MAR E903A
Country of Origin MEX

Specifications

C Dim 14.49″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 86.5
Frame 145T
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 6.6
Rated Voltage 208
Rotation Reversible
RPM 1750
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1750
Starting Method
