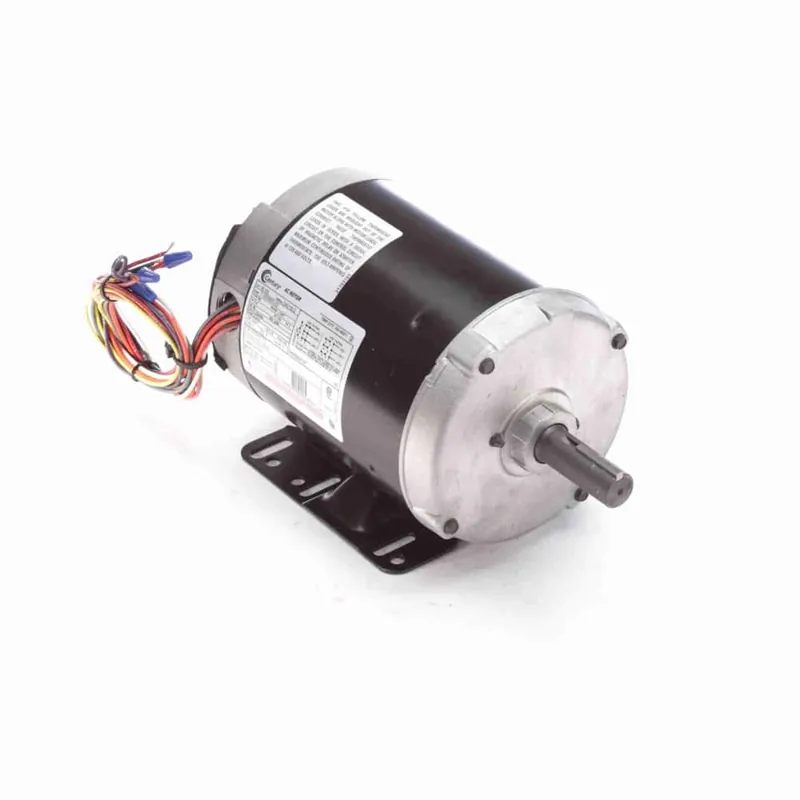

2HP 3PH 145T 2P TEAO 3450 208-230/460V Farm

Description

Product Information

Brand Century
Mfr # R181
Wright’s # CEN R181
Country of Origin MEX

Specifications

C Dim 12.06″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure TEAO
Frame 145T
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 7.1-6.8/3.4
Rated Voltage 208-230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1
Shaft Diameter 0.875″
Speed 3450
Starting Method
