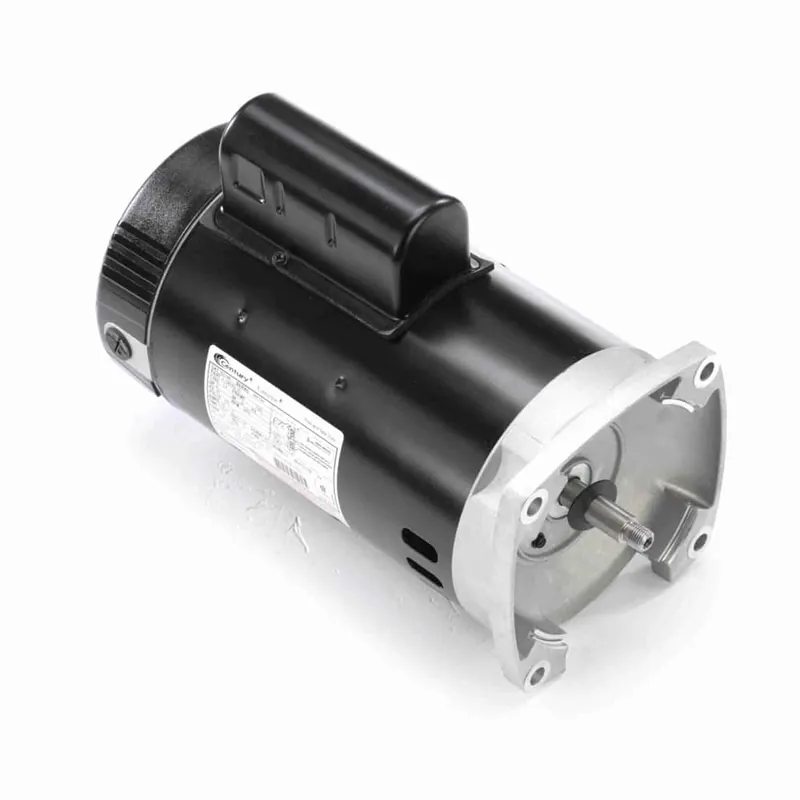

2HP 1PH 56Y 2P ODP 3450 230V AOL UL1081

Description

Product Information

Brand Century
Mfr # B2748
Wright’s # CEN B2748
Country of Origin MEX

Specifications

C Dim 13.4″
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 2
Overload Protection Thermally Protected
Phase 1
Rated Current SF 11.5
Rated Voltage 230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.3
Shaft Diameter 0.625″
Speed 3450
