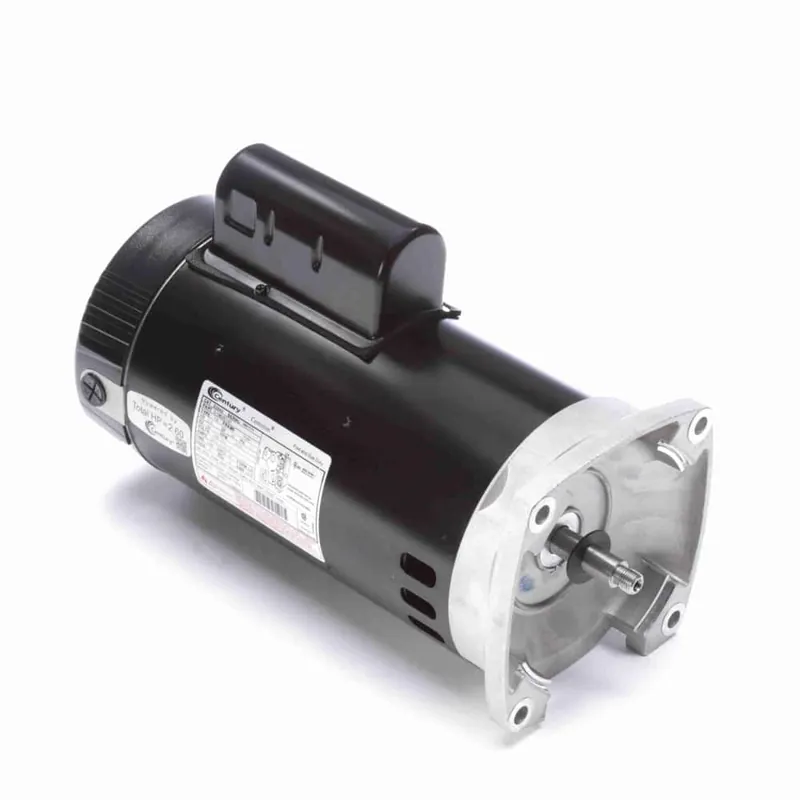

2HP 1PH 56Y 2P ODP 3450 208-230V AOL UL1081

Description

Product Information

Brand Century
Mfr # B2843
Wright’s # CEN B2843
Country of Origin CHN

Specifications

C Dim 14.4″
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current SF 11.0-10.2
Rated Voltage 208-230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.3
Shaft Diameter 0.625″
Speed 3450
