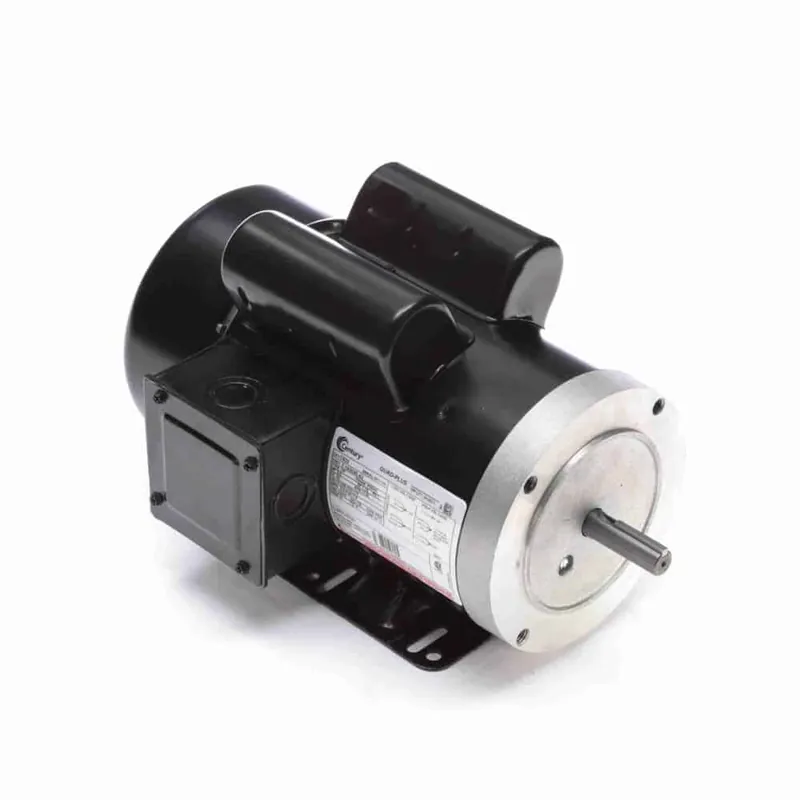

2HP 1PH 56HC 4P TEFC 1725 115/208-230V

Description

Product Information

Brand Century
Mfr # C832
Wright’s # CEN C832
Country of Origin MEX

Specifications

C Dim 14.21″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56HC
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 9.6-8.9/17.8
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
