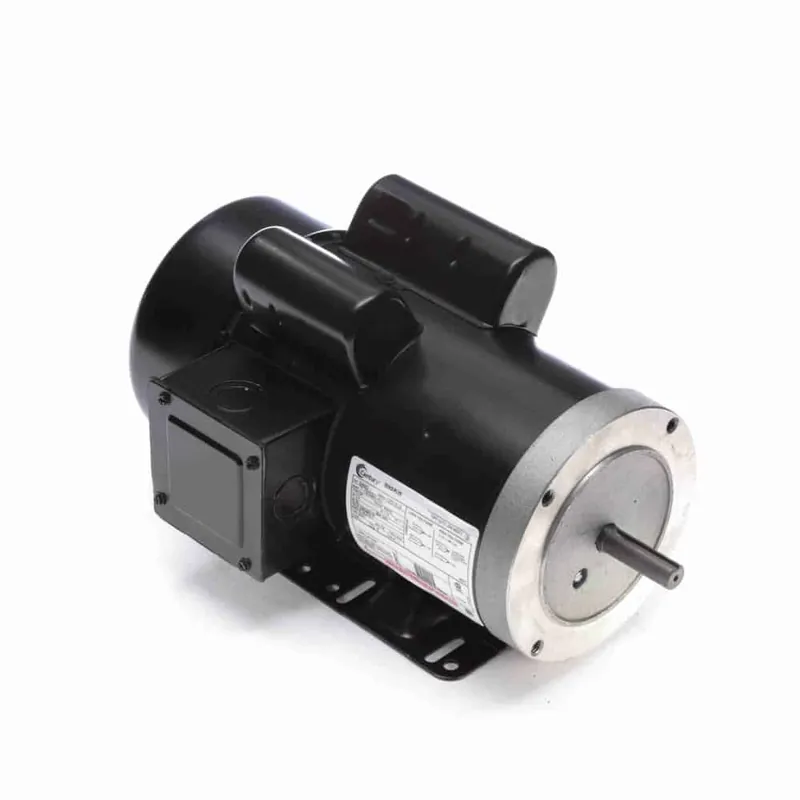

2HP 1PH 56HC 2P TEFC 3450 115/208-230V

Description

Product Information

Brand Century
Mfr # B892
Wright’s # CEN B892
Country of Origin MEX

Specifications

C Dim 14.96″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56HC
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 9.1-8.2/16.4
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
