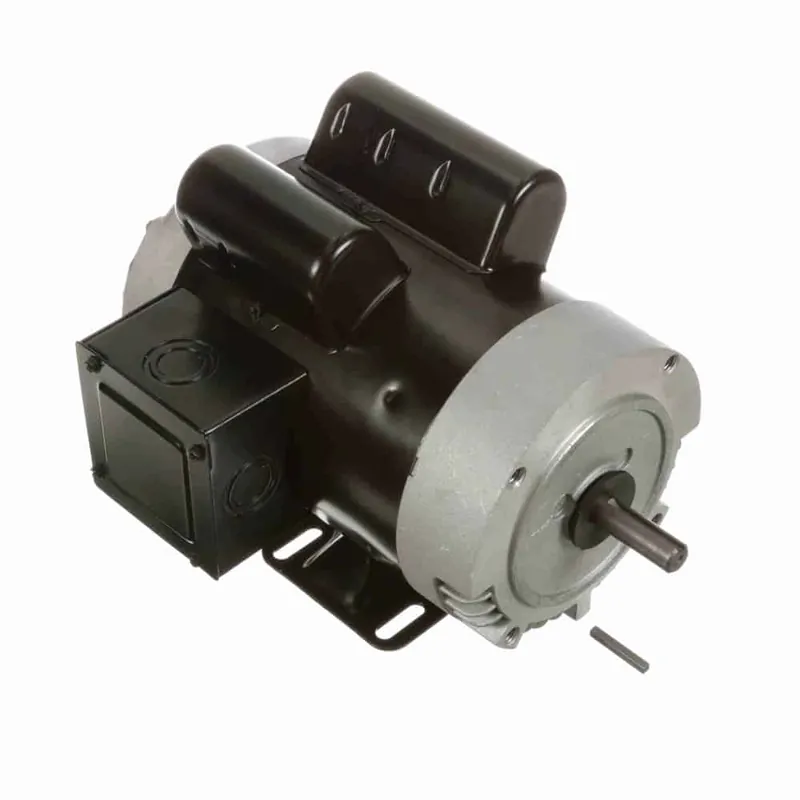

2HP 1PH 56C 2P ODP 3450 115/230V AOL
Description
Product Information
Brand Century
Mfr # B764ES
Wright’s # CEN B764ES
Country of Origin MEX
Specifications
C Dim 12.7″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Full Load Efficiency 83
Frame 56C
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 17.8/8.9
Rated Voltage 115/230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
