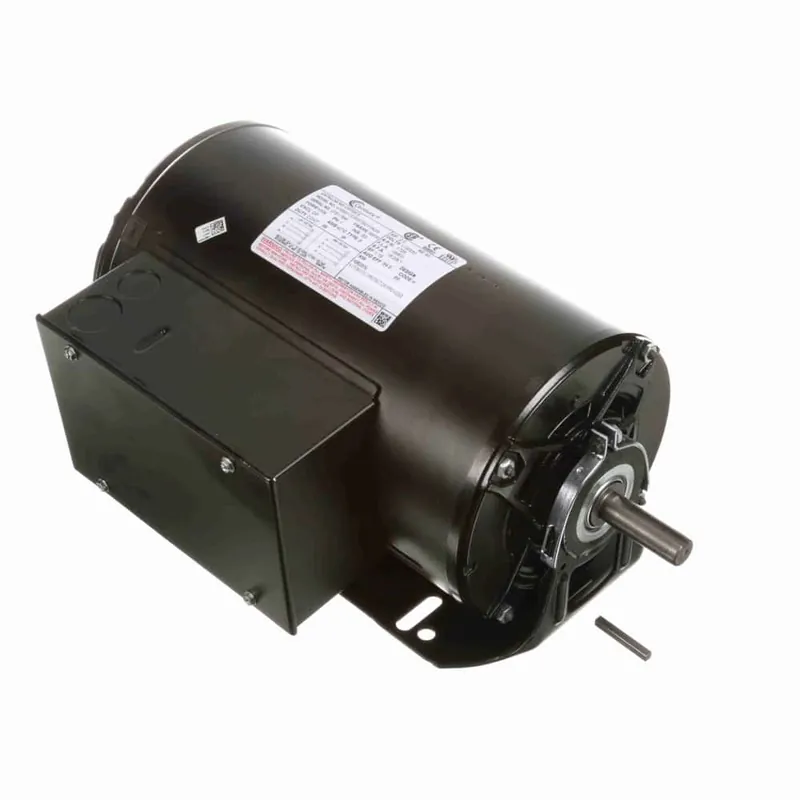

2HP 1PH 56 4P ODP 1725 115/230V AOL

Description

Product Information

Brand Century
Mfr # C859ES
Wright’s # CEN C859ES
Country of Origin MEX

Specifications

C Dim 14.43″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Full Load Efficiency 84.5
Frame 56
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 16/8.0
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
