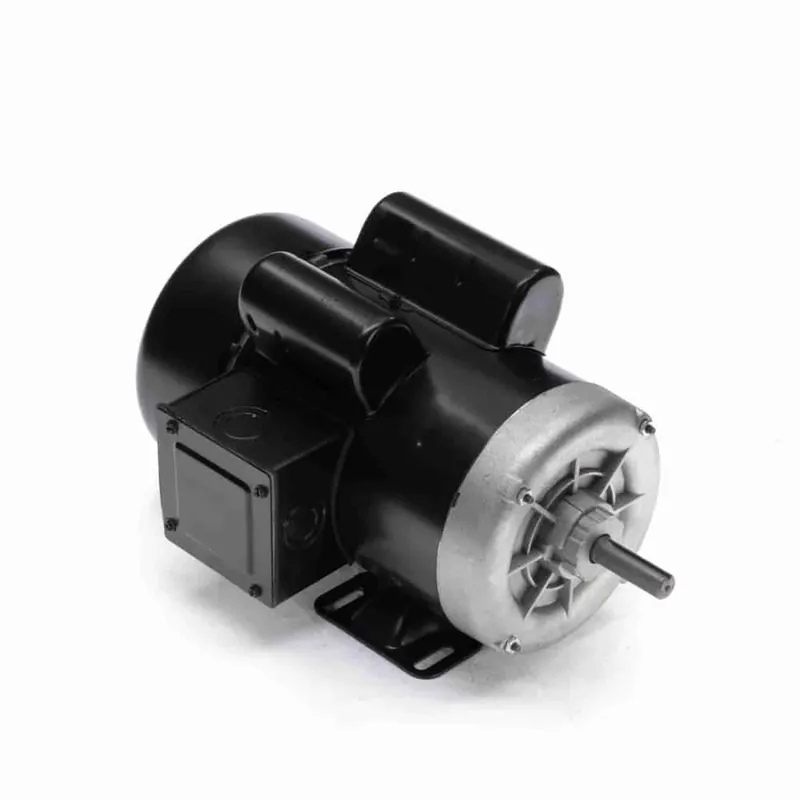

2HP 1PH 56 2P TEFC 3450 115/208-230V Farm

Description

Product Information

Brand Century
Mfr # C802
Wright’s # CEN C802
Country of Origin MEX

Specifications

C Dim 14.36″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 9.1-8.4/16.6
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
