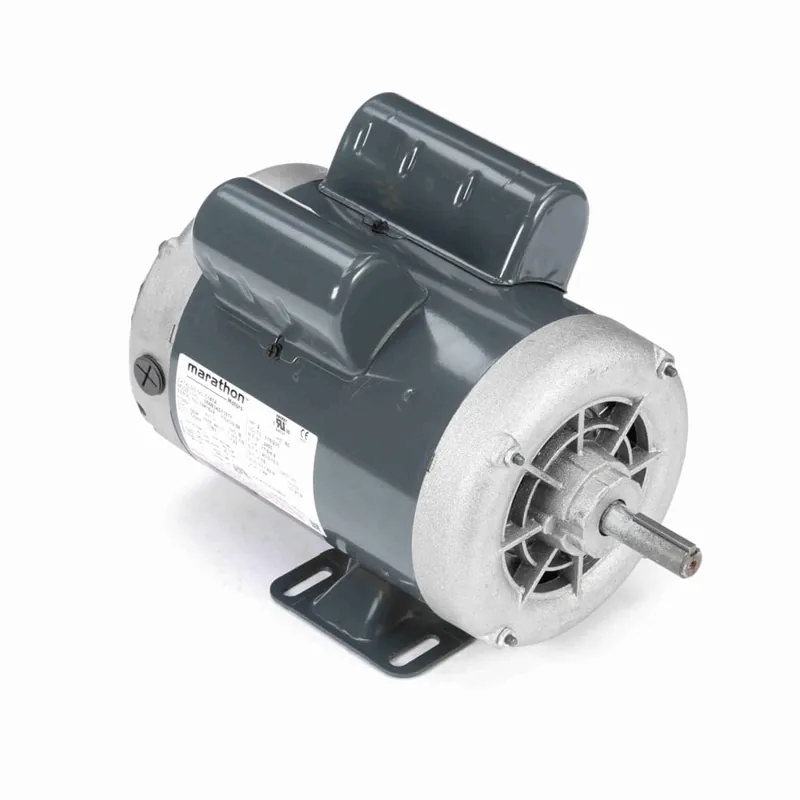

2HP 1PH 56 2P ODP 3600 115/230V MOL WB

Description

Product Information

Brand Marathon
Mfr # C187A
Wright’s # MAR C187A
Country of Origin MEX

Specifications

C Dim 12.93″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Full Load Efficiency 82.9
Frame 56
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 17.8/8.9
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
