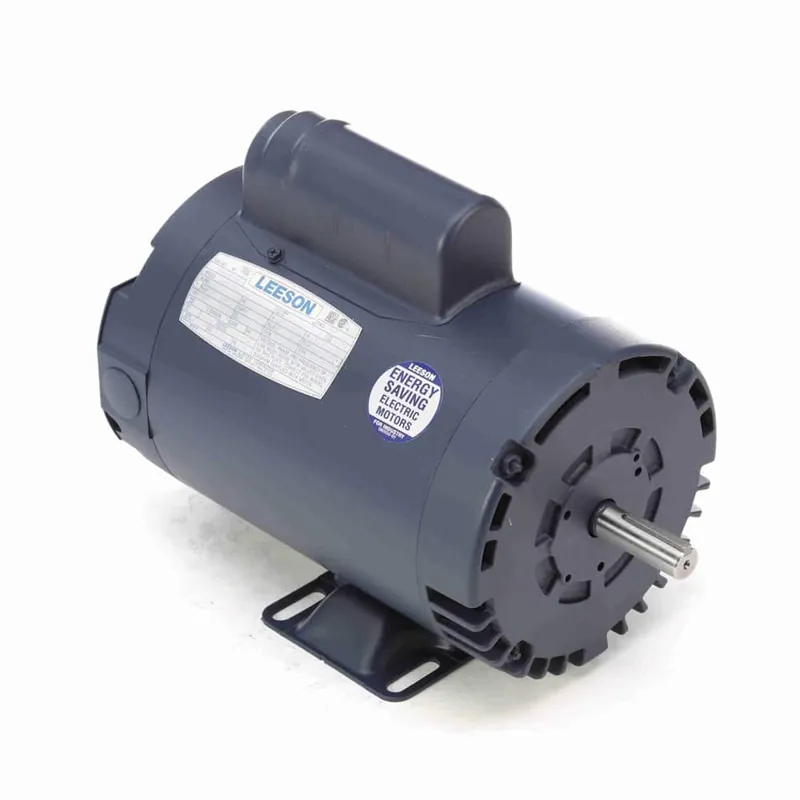

2HP 1PH 56 2P DP 3450 115/230V MOL

Description

Product Information

Brand Leeson
Mfr # 110232.00
Wright’s # LSN 110232.00
Country of Origin USA

Specifications

C Dim 11.88″
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 74
Frame 56
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 22.0/11.0
Rated Voltage 115/230
Rotation Selective Clockwise
RPM 3450
Service Factor 1
Shaft Diameter 0.625″
Speed 3450
Starting Method
