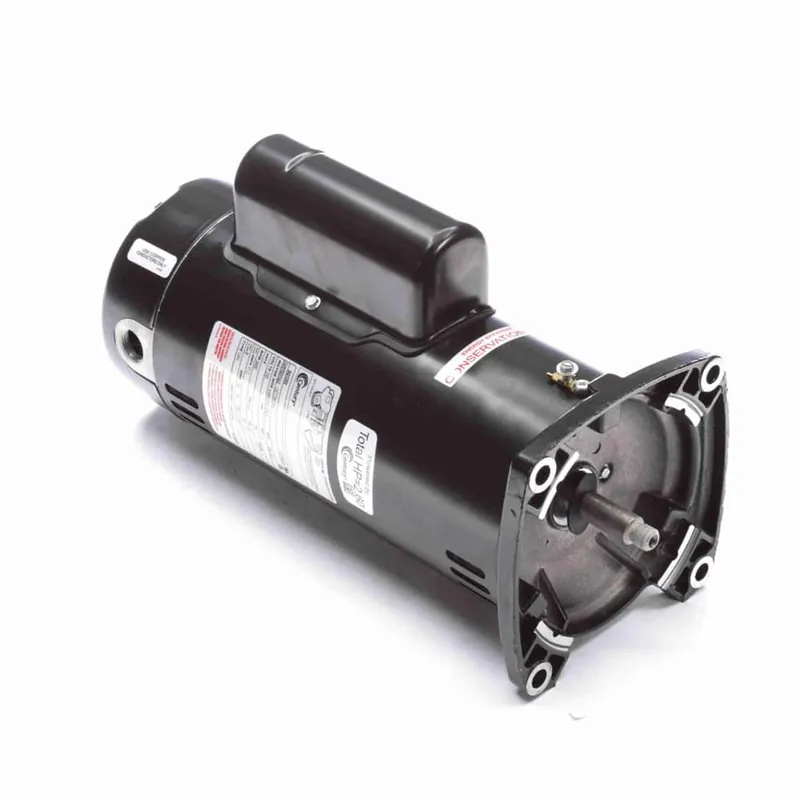

2HP 1PH 48Y 2P ODP 3450 230V AOL UL1081

Description

Product Information

Brand Century
Mfr # SQ1202
Wright’s # CEN SQ1202
Country of Origin THA

Specifications

C Dim 14.57″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 11.2
Rated Voltage 230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.3
Shaft Diameter 0.625″
Speed 3450
