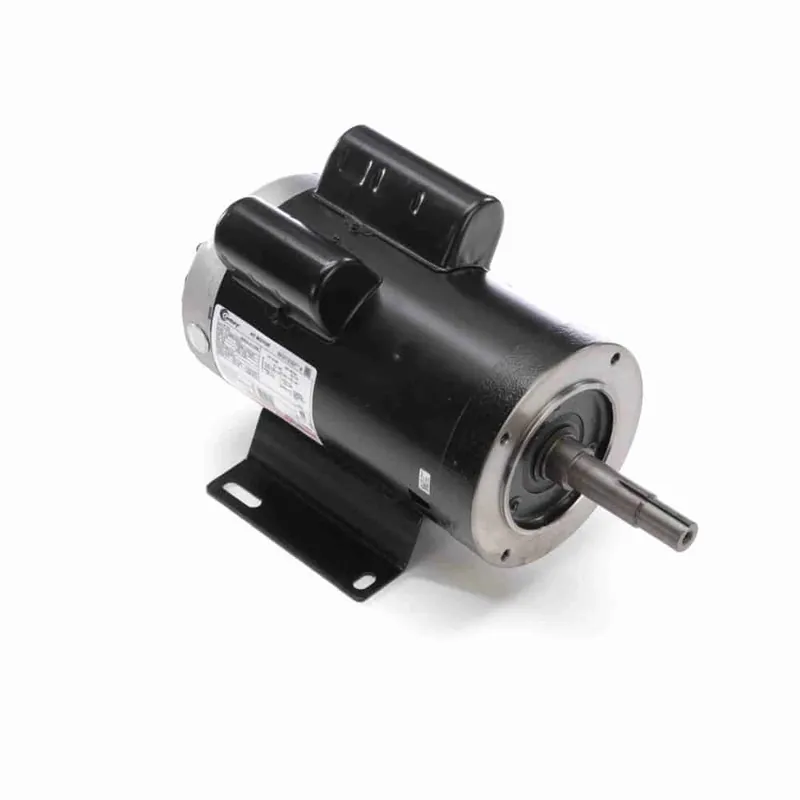

2HP 1PH 182JM 4P ODP 1745 115/230V

Description

Product Information

Brand Century
Mfr # P137
Wright’s # CEN P137
Country of Origin MEX

Specifications

C Dim 16.29″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 182JM
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 10.2/20.4
Rated Voltage 115/230
Rotation Clockwise
RPM 1745
Service Factor 1.15
Shaft Diameter 1.25″
Speed 1745
Starting Method
