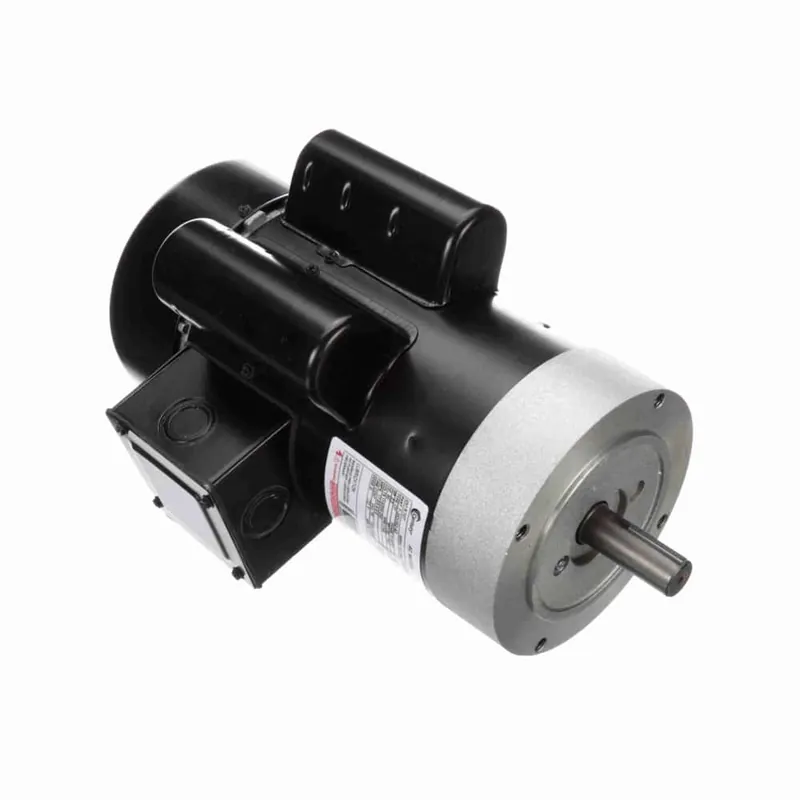

2HP 1PH 145TC 4P TEFC 1745 115/208-230V

Description

Product Information

Brand Century
Mfr # K107
Wright’s # CEN K107
Country of Origin MEX

Specifications

C Dim 15.17″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure TEFC
Frame 145TC
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 17.8/9.6-8.9
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 1745
Service Factor 1
Shaft Diameter 0.875″
Speed 1745
Starting Method
