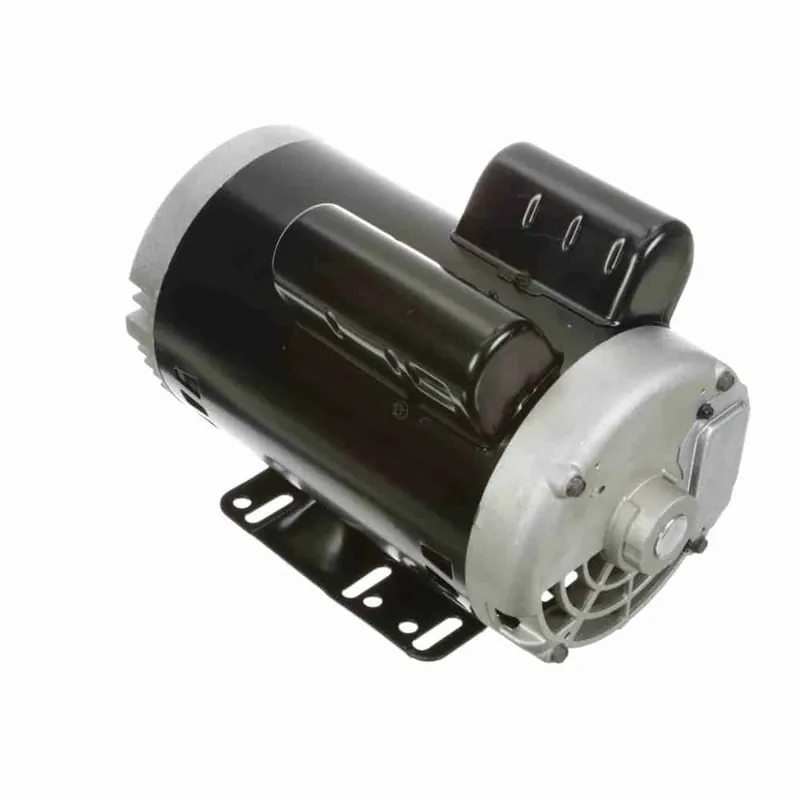

2HP 1PH 145TC 4P ODP 1745 115/208-230V

Description

Product Information

Brand Century
Mfr # V106
Wright’s # CEN V106
Country of Origin MEX

Specifications

C Dim 13.85″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 145TC
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class B
kW 1.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 10.0-10.2/20.4
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 1745
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1745
Starting Method
